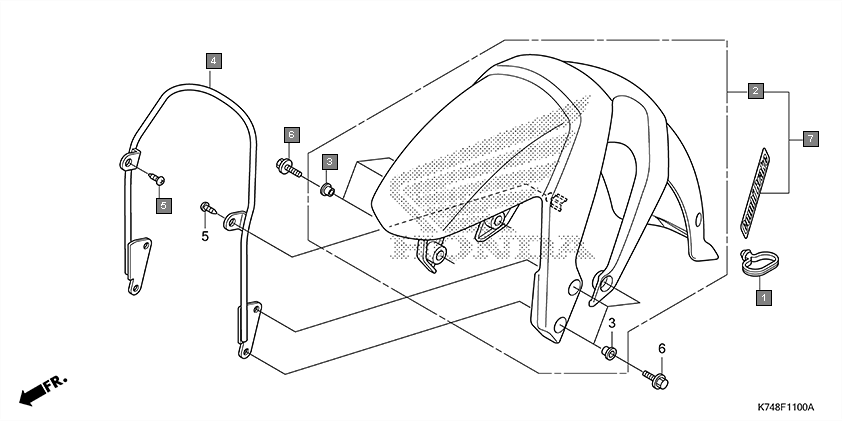

Scooters Navi NVA110BK Frame Front fender
Ref.No. Part No. Description Oty
1 45451KTE600 GUIDE, FR. FENDER CABLE 1
2 61100K74N00 FENDER, FR. 1
3 61101K55600 COLLAR, FR. FENDER SETTING 6
4 61102K74N00 STAY, FR. FENDER 1
5 9390335280 SCREW, TAPPING, 5X12 2
6 960010601600 BOLT, FLANGE, 6X16 6
7 61000K74N60ZA FENDER SET, FR.(WL) *TYPE1* 1
