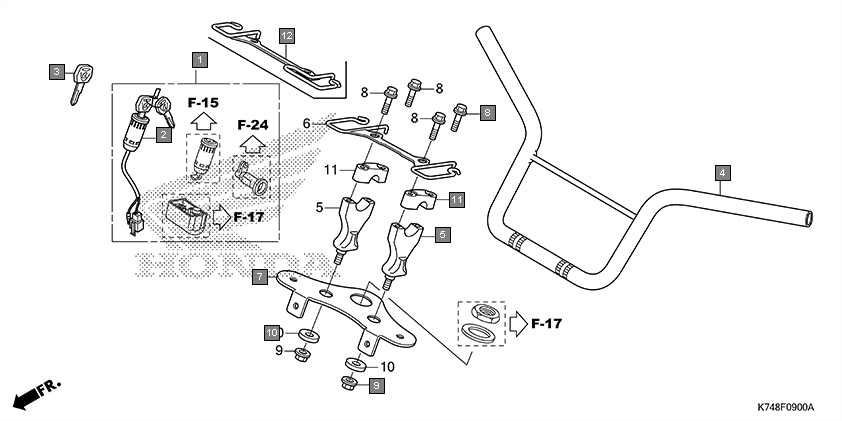

Scooters Navi NVA110BK Frame Steering handle/key set
Ref.No. Part No. Description Oty
1 35010K74N00 KEY SET 1
2 35100K74N01 SWITCH ASSY., COMBINATION 1
3 35121K74N00 KEY, BLANK 1
4 53100K74N00 PIPE, STEERING HANDLE 1
5 53132K74N00 HOLDER, HANDLE PIPE UNDER 2
6 53230K74N00 BRIDGE, FORK TOP 1
7 90117383000 BOLT, FLANGE, 6X28 4
8 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 2
9 90521427770 WASHER, 10.3MM 2
10 9501421101 HOLDER A1, HANDLE PIPE UPPER 2
11 53139K74N60 GUIDE COMP., CABLE 1
