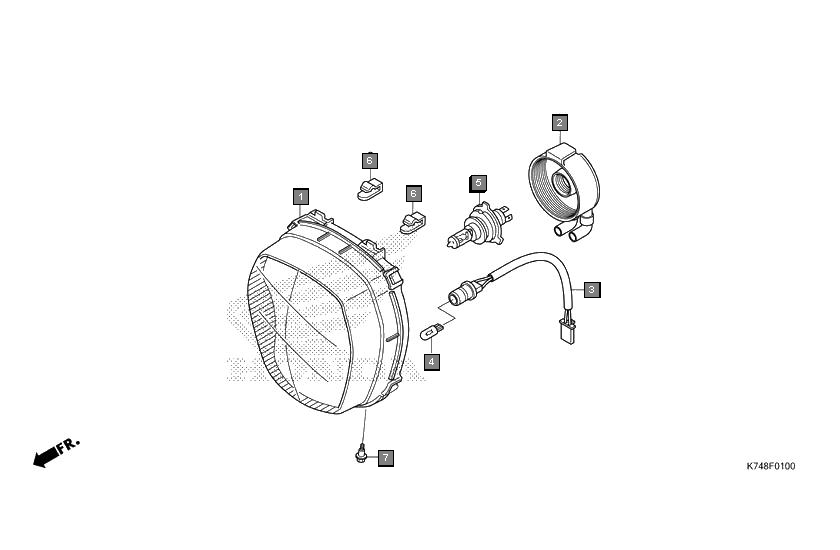

Scooters Navi NVA110BK Frame Headlight
Ref.No. Part No. Description Oty
1 33110K74N01 HEADLIGHT UNIT 1
2 33112KWS901 COVER, RUBBER 1
3 33130K55601 SOCKET COMP., POSITION LIGHT 1
4 33301KYJ901 BULB, WEDGE BASE(T10 12V 5W) 1
5 34901KVN971 BULB, HEADLIGHT(HS1) (12V 35/35W)(PHOENIX) 1
6 34901KTE740 BULB, HEADLIGHT(HS1) (12V 35/35W)(PHILIPS) 1
7 53209GAH000 CLIP, HEADLIGHT 2
8 90101KTE650 BOLT, ADJUSTING 1
