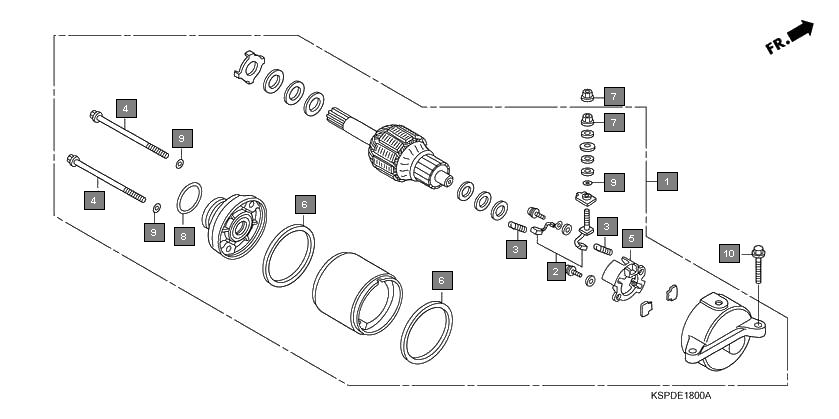

Motorcycles CB Unicorn CBF1507 Engine Starting motor
Ref.No. Part No. Description Oty
1 31200KSP901 MOTOR ASSY., STARTING (MITSUBA SM-15) 1
2 31201KPW901 TERMINAL SET, BRUSH 1
3 31201KPTA01 TERMINAL SET, BRUSH 1
4 31204KG8004 SPRING, CARBON BRUSH 2
5 31205KPH881 BOLT, SETTING 2
6 31205KTC921 BOLT, SETTING 2
7 31206KPH881 HOLDER, BRUSH 1
8 31207MBE008 RING 2
9 90071MB0000 NUT-WASHER, 6MM 2
10 91309425003 O-RING, 24.4X3.1(ARAI) 1
11 91320MB0000 O-RING, 4X2 3
12 957010602200 BOLT, FLANGE, 6X22 2
13 957020602200 BOLT, FLANGE, 6X22 2
