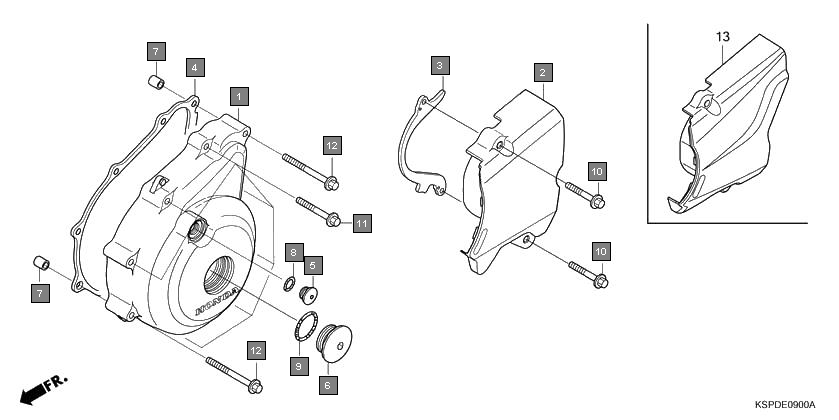

Motorcycles CB Unicorn CBF1507 Engine Left crankcase cover
Ref.No. Part No. Description Oty
1 11341KSP860 COVER, L. CRANKCASE 1
2 11360KSP860 COVER COMP., L. RR. 1
3 11365KSP910 GUIDE, DRIVE CHAIN 1
4 11395KRM840 GASKET, L. COVER 1
5 90084MN8010 CAP, 14MM 1
6 90087KRM840 CAP, 32MM 1
7 90087KSP860 CAP, 32MM 1
8 91105KSP910 DOWEL PIN, 8X14 2
9 91303KRM840 O-RING, 13.8X2.5 1
10 91305KRM840 O-RING, 31.7X2.4 1
11 960010603000 BOLT, FLANGE, 6X30 2
12 960010603500 BOLT, FLANGE, 6X35 7
13 960010604500 BOLT, FLANGE, 6X45 2
