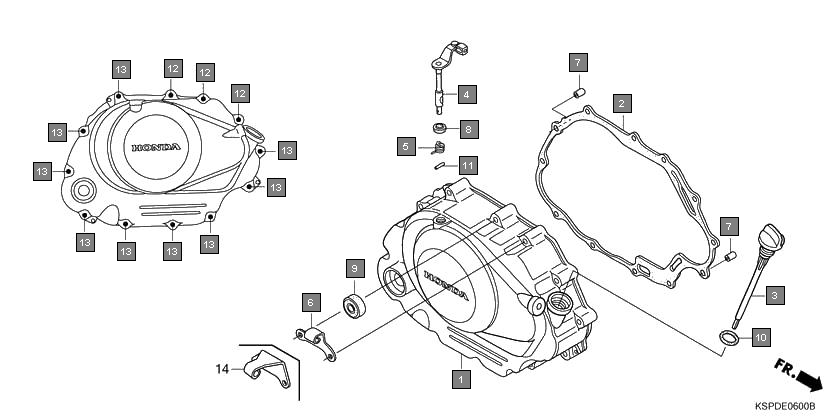

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 11330KSP860 | COVER COMP., R. CRANKCASE | 1 |
| 2 | 11393KRM840 | GASKET, R. CRANKCASE COVER | 1 |
| 3 | 15651KSP910 | GAUGE, OIL LEVEL | 1 |
| 4 | 22810KSP910 | LEVER COMP., CLUTCH | 1 |
| 5 | 22810KRM840 | LEVER COMP., CLUTCH | 1 |
| 6 | 22815428000 | SPRING, CLUTCH LEVER | 1 |
| 7 | 91105KSP910 | DOWEL PIN, 8X14 | 2 |
| 8 | 91202KSP911 | OIL SEAL, 12X18X4 | 1 |
| 9 | 91204KSP911 | OIL SEAL, 16X28X7 | 1 |
| 10 | 91307KRM840 | O-RING, 18X3 | 1 |
| 11 | 9430530102 | PIN, SPRING, 3X10 | 1 |
| 12 | 960010603000 | BOLT, FLANGE, 6X30 | 3 |
| 13 | 960010604000 | BOLT, FLANGE, 6X40 | 9 |
| 14 | 22821KTE910 | RECEIVER, CLUTCH CABLE | 1 |
