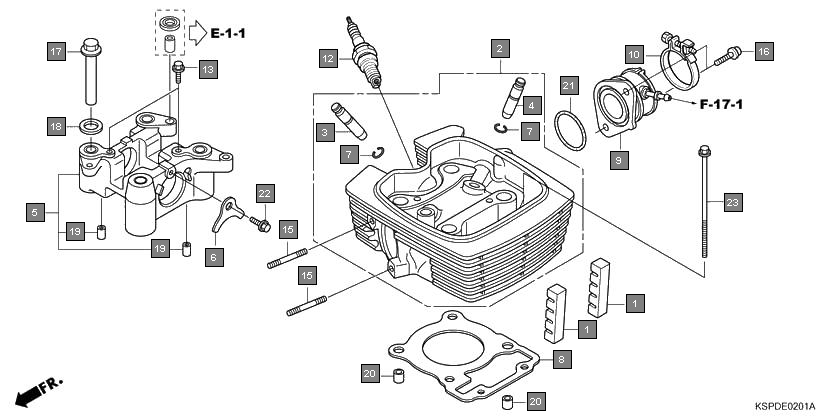

Motorcycles CB Unicorn CBF1507 Engine Cylinder head(cbf1507/m7/m9/ma/mb/mc)
Ref.No. Part No. Description Oty
1 12195KTE910 RUBBER, INSERT 2
2 12200KSP860 HEAD COMP., CYLINDER 1
3 12204KRM305 GUIDE, VALVE(O.S.)(EXHAUST SIDE) 1
4 12205KSP305 GUIDE, IN. VALVE(O.S.) 1
5 12210KSP910 HOLDER COMP., CAMSHAFT 1
6 12212KRM840 PLATE, STOPPER 1
7 12213KSP910 CLIP, VALVE GUIDE 2
8 12251KSP910 GASKET, CYLINDER HEAD 1
9 16210KSP910 INSULATOR COMP., CARBURETOR 1
10 16217KSP910 BAND, INSULATOR 1
11 31916KRM841 PLUG, SPARK(CPR8EA-9)(NGK) 1
12 31926KRM841 PLUG, SPARK(CPR9EA-9)(NGK) 1
13 31926KSP861 PLUG, SPARK(UR4DC)(BOSCH) 1
14 31916KSP861 PLUG, SPARK(UR5DC) 1
15 90002KRM840 BOLT, FLANGE, 5X14 2
16 90040KSP910 BOLT, STUD, 8X22 2
17 90091KRM840 BOLT, FLANGE SOCKET, 6X22 2
18 90306KRM840 NUT, CYLINDER HEAD 4
19 90404KPTA00 WASHER, PLAIN, 12MM 4
20 90704KRM840 DOWEL PIN, 6X10 2
21 9430206100 DOWEL PIN, 6X10 2
22 9430306100 DOWEL PIN, 6X10 2
23 91106KSP910 DOWEL PIN, 10X12 2
24 91304KRM840 O-RING, 33.5X3.0 1
25 957010601400 BOLT, FLANGE, 6X14 1
26 957020601400 BOLT, FLANGE, 6X14 1
27 958010610500 BOLT, FLANGE, 6X105 2
28 958020610500 BOLT, FLANGE, 6X105 2
