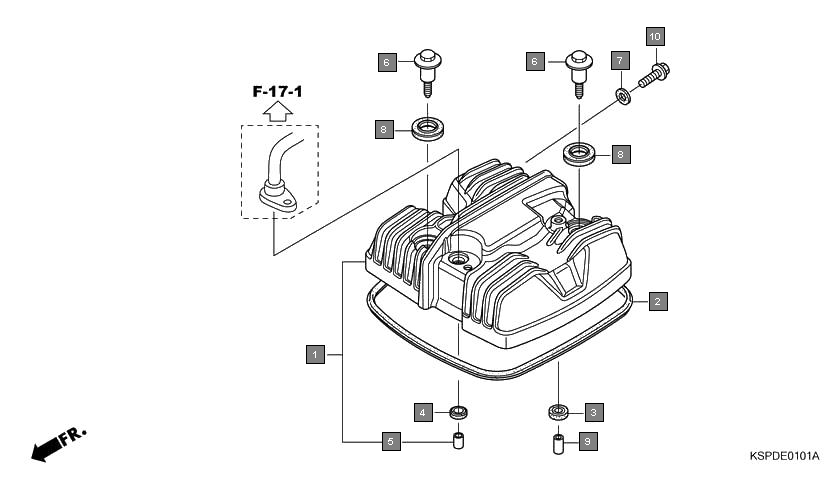

Motorcycles CB Unicorn CBF1507 Engine Cylinder head cover(cbf1507/m7/m9/ma/mb/mc)
Ref.No. Part No. Description Oty
1 12310KSP860 COVER COMP., CYLINDER HEAD 1
2 12391KRM840 GASKET, HEAD COVER 1
3 12396KRM840 GASKET B, HEAD COVER 1
4 12397KSP910 GASKET C, HEAD COVER 1
5 12398KSP910 COLLAR, 9MM 1
6 90003KFG000 BOLT, L. CRANKCASE COVER 2
7 90463KRM840 WASHER, SEALING, 6.2X12X1.2 1
8 90543KSP910 RUBBER, MOUNTING 2
9 91105KSP910 DOWEL PIN, 8X14 1
10 960010601200 BOLT, FLANGE, 6X12 1
