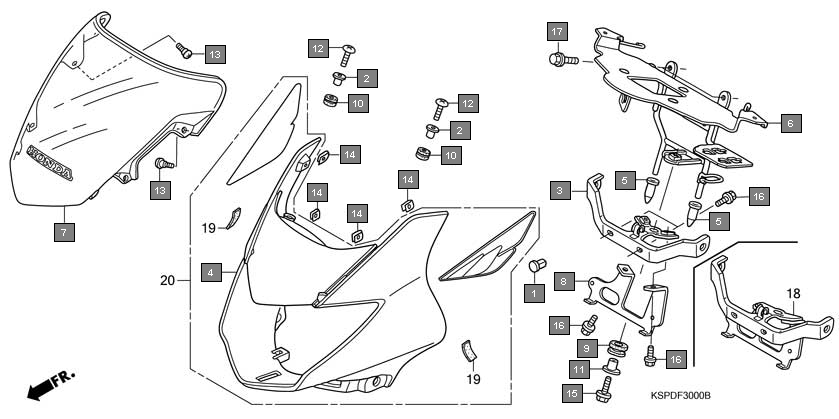

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 17217MR1300 | NUT, INSERT, 6MM | 2 |
2 | 19052KV0000 | COLLAR, RADIATOR MOUNTING | 2 |
3 | 61312KCT690 | BOOT, HEADLIGHT STAY | 2 |
4 | 61312KSP930 | STAY COMP., FR. COWL | 1 |
5 | 64100KSP930ZA | WINDSCREEN SET(WL) *TYPE1* | 1 |
6 | 80101283000 | RUBBER, RR. FENDER CUSHION | 1 |
7 | 83545KCJ690 | RUBBER, SIDE COVER | 2 |
8 | 84706163670 | COLLAR, TAILLIGHT MOUNTING | 1 |
9 | 90107KSP900 | SCREW, COWL SETTING(A) | 2 |
10 | 90115KPP860 | SCREW, VISOR SPECIAL SETTING | 4 |
11 | 90677KSP900 | NUT, CLIP, 5MM | 4 |
12 | 92301060200A | BOLT, RECESSED, 6X20 | 1 |
13 | 957010601000 | BOLT, FLANGE, 6X10 | 4 |
14 | 957010601600 | BOLT, FLANGE, 6X16 | 2 |
15 | 33610KSP930 | STAY COMP., FR. WINKER | 1 |
16 | 61304KSP900 | RUBBER, FR. COWL | 2 |
17 | 61300KSP931ZA | COWL SET, FR.(WL) *TYPE1* | 1 |
18 | 61300KSP931ZB | COWL SET, FR.(WL) *TYPE2* | 1 |
19 | 61300KSP931ZC | COWL SET, FR.(WL) *TYPE3* | 1 |
20 | 61300KSP931ZD | COWL SET, FR.(WL) *TYPE4* | 1 |
21 | 61300KSP931ZE | COWL SET, FR.(WL) *TYPE5* | 1 |
