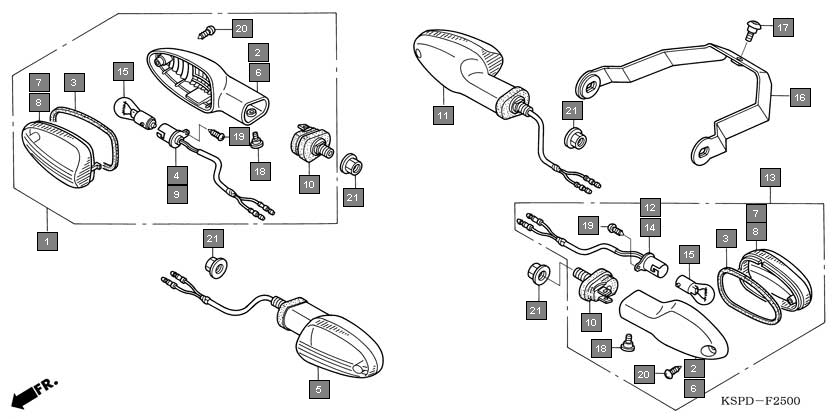

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33400KSP931 | WINKER ASSY., R. FR. | 1 |
2 | 33401KSP911 | BASE, R. WINKER (R. FR./R. RR.) | 2 |
3 | 33406KSP911 | PACKING, LENS | 4 |
4 | 33415KSP931 | SOCKET COMP., R. WINKER (FR.) | 1 |
5 | 33450KSP931 | WINKER ASSY., L. FR. | 1 |
6 | 33451KSP911 | BASE, L. WINKER (L. FR./L. RR.) | 2 |
7 | 33452KSP911 | LENS, L. WINKER (L. FR./L. RR.) | 2 |
8 | 33462KSP911 | LENS, R. WINKER (R. FR./R. RR.) | 2 |
9 | 33465KSP931 | SOCKET COMP., L. WINKER (FR.) | 1 |
10 | 33491KSP912 | STAY COMP., WINKER | 4 |
11 | 33600KSP931 | WINKER ASSY., R. RR. | 1 |
12 | 33615KSP931 | SOCKET COMP., R. WINKER (RR.) | 1 |
13 | 33650KSP931 | WINKER ASSY., L. RR. | 1 |
14 | 33665KSP931 | SOCKET COMP., L. WINKER (RR.) | 1 |
15 | 34908634611 | BULB(12V 21W)(ECE)(STANLEY) | 4 |
16 | 50186KSP900 | STAY, RR. WINKER | 1 |
17 | 90106MM4000 | SCREW, PAN, 6X14 | 1 |
18 | 90380MB2000 | SCREW, SPECIAL, 6X8 | 4 |
19 | 9390122320 | SCREW, TAPPING, 3X12 | 4 |
20 | 9390134480 | SCREW, TAPPING, 4X16 | 4 |
21 | 9405010000 | NUT, FLANGE, 10MM | 4 |
