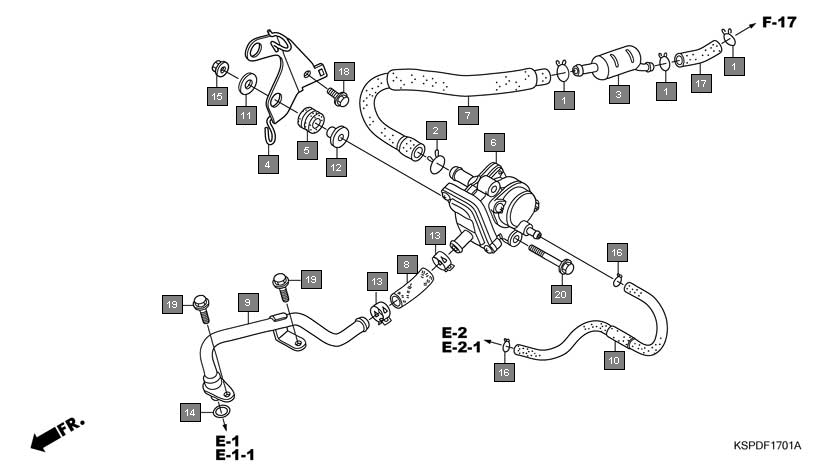

Motorcycles CB Unicorn CBF1506 Frame Air suction valve
Ref.No. Part No. Description Oty
1 15772500013 CLIP, BREATHER TUBE 3
2 17316611000 CLIP, BREATHER TUBE 1
3 17360KSP900 RESONATOR, AIR SUCTION VALVE 1
4 17365KSP901 STAY, AIR SUCTION VALVE 1
5 17622GB7900 RUBBER, CUSHION 2
6 18600KSP901 VALVE ASSY., AIR SUCTION 1
7 18601KSP900 TUBE A, AIR SUCTION VALVE 1
8 18602KSP900 TUBE B, AIR SUCTION VALVE 1
9 18640KSP910 PIPE COMP., AIR FEED 1
10 18655KSP901 TUBE, AIR SUCTION VALVE(PB) 1
11 90417KSP900 WASHER, AIR SUCTION VALVE 2
12 90502KEZ900 COLLAR, CUSHION RUBBER 2
13 90678MR1690 CLIP, HOSE 2
14 91309MJ0003 O-RING, 9.8X2.8(ARAI) 1
15 9405006000 NUT, FLANGE, 6MM 2
16 9500202070 CLIP, TUBE(B7) 2
17 950058005520 TUBE, 8X55(95005-80001-20M) 1
18 957010601207 BOLT, FLANGE, 6X12 1
19 957010601600 BOLT, FLANGE, 6X16 2
20 957010603000 BOLT, FLANGE, 6X30 2
