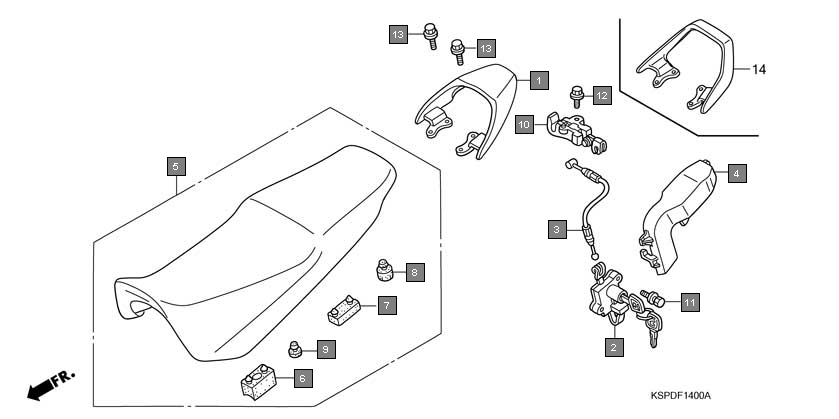

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 50400KSP900ZA | GRIP, RR.*NH35M*CLOUD SILVER METALLIC | 1 |
2 | 77110KSP911 | LOCK ASSY., SEAT | 1 |
3 | 77156KSP900 | CABLE, SEAT LOCK | 1 |
4 | 77160KSP900 | COVER, SEAT LOCK CABLE | 1 |
5 | 77200KSP901 | SEAT COMP., DOUBLE | 1 |
6 | 77204KCC900 | RUBBER A, SEAT SETTING | 2 |
7 | 77205286000 | RUBBER B, SEAT SETTING | 2 |
8 | 77206KFN850 | RUBBER, SEAT CUSHION | 2 |
9 | 77215GC2000 | RUBBER B, SEAT STOPPER | 2 |
10 | 77220KY6010 | HOOK, SEAT CATCH | 1 |
11 | 90107GZ4670 | BOLT, BREAK OFF | 2 |
12 | 957010601200 | BOLT, FLANGE, 6X12 | 1 |
13 | 957010802000 | BOLT, FLANGE, 8X20 | 4 |
