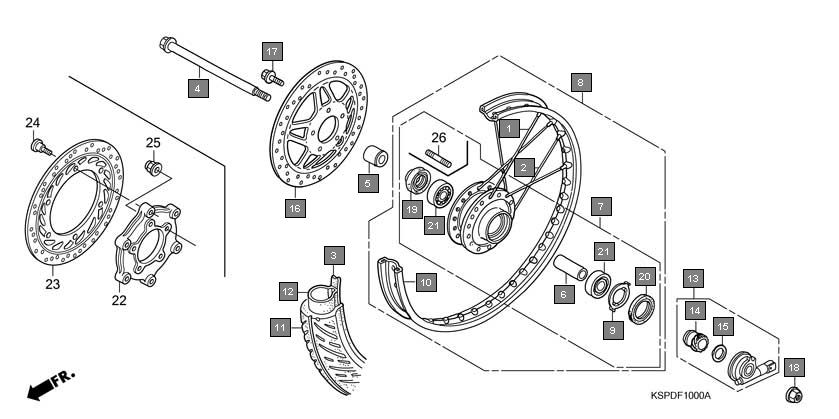

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 06440KFN850 | SPOKE SET A, FR.(OUTSIDE) | 18 |
2 | 06441KFN850 | SPOKE SET B, FR.(INSIDE) | 18 |
3 | 42713KSP901 | FLAP, TIRE(1.60/1.85-18) | 1 |
4 | 44301KSP900 | AXLE, FR. WHEEL | 1 |
5 | 44311KSP900 | COLLAR, FR. WHEEL SIDE | 1 |
6 | 44620KSP900 | COLLAR, FR. AXLE DISTANCE | 1 |
7 | 44635KSP930ZA | HUB SUB ASSY., FR. *NH35M* CLOUD SILVER METALLIC | 1 |
8 | 44650KSP930ZA | WHEEL SUB ASSY., FR. *NH35M* CLOUD SILVER METALLIC | 1 |
9 | 44680410000 | RETAINER, GEAR BOX | 1 |
10 | 44701KSP930 | RIM, FR. WHEEL | 1 |
11 | 44711KFN852 | TIRE, FR.(2.75-18 42P) | 1 |
12 | 44712KFN852 | TUBE(2.75-18) | 1 |
13 | 44800KSP900ZA | BOX ASSY., SPEEDOMETER GEAR *NH35M* CLOUD SILVER METALLIC | 1 |
14 | 44804KSP901 | GEAR, SPEEDOMETER | 1 |
15 | 44809KPL900 | WASHER, SPEEDOMETER GEAR | 1 |
16 | 90306KGH901 | NUT, U, 12MM(FUJI SEIMITSU) | 1 |
17 | 91251KPH901 | DUST SEAL, 21X37X7(ARAI) | 1 |
18 | 91258410013 | DUST SEAL, 40X50X5(ARAI) | 1 |
19 | 961406301010 | BEARING, RADIAL BALL, 6301U | 2 |
20 | 45122KSP930ZA | HUB, FR. BRAKE | 1 |
21 | 45251KSP931 | DISK, FR. BRAKE | 1 |
22 | 90105KSP930 | BOLT, DISK, 8X22 | 6 |
23 | 90301KGH901 | NUT, U, 6MM(FUJI SEIMITSU) | 5 |
24 | 92911060180E | BOLT, STUD, 6X18 | 5 |
