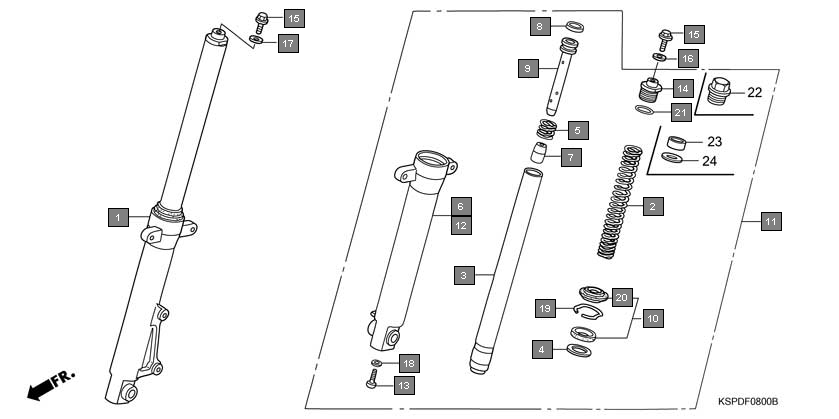

Motorcycles CB Unicorn CBF1506 Frame Front fork
Ref.No. Part No. Description Oty
1 51400KSP901 FORK ASSY., R. FR.(###) 1
2 51401KSP901 SPRING, FR. FORK 2
3 51410KSP901 PIPE COMP., FR. FORK 2
4 51412KK4003 RING, BACK UP 2
5 51412KSP901 SPRING, REBOUND 2
6 51420KSP901 CASE COMP., R. FR. BOTTOM 1
7 51432KFN851 PIECE, OIL LOCK 2
8 51437KFN851 RING, PISTON 2
9 51440KSP901 PIPE, SEAT 2
10 51490GAA305 SEAL SET, FR. FORK 2
11 51500KSP901 FORK ASSY., L. FR.(###) 1
12 51520KSP901 CASE COMP., L. FR. BOTTOM 1
13 90116KAG901 BOLT, SOCKET, 8MM(SHOWA) 2
14 90123KSP901 BOLT A, FR. FORK 2
15 90123KRM860 BOLT, FR. FORK 2
16 90521KSP900 WASHER, 10.3MM 1
17 90521KRM860 WASHER, 10.3MM 1
18 90544439930 PACKING(SHOWA) 2
19 90601354000 RING, OIL SEAL STOP 2
20 91254GAA003 DUST SEAL 2
21 91356KAG901 O-RING(SHOWA) 2
