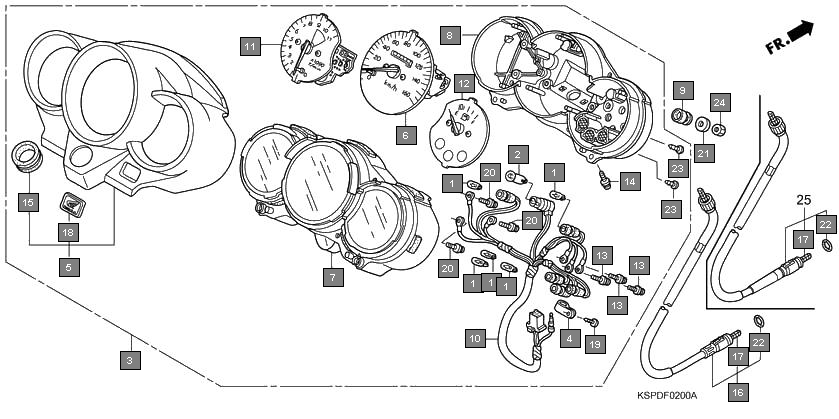

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 34908MG9951 | BULB, WEDGE BASE(12V 1.7W) | 5 |
2 | 34909KPL901 | BULB(12V/1.7W) | 1 |
3 | 37100KSP912 | METER ASSY., COMBINATION(KPH) | 1 |
4 | 37121ML7671 | CLAMP | 1 |
5 | 37125KSP911 | COVER ASSY., UPPER | 1 |
6 | 37200KSP911 | SPEEDOMETER COMP. | 1 |
7 | 37211KSP911 | CASE ASSY., UPPER | 1 |
8 | 37212KSP911 | CASE ASSY., LOWER | 1 |
9 | 37215ML0008 | RUBBER, METER SETTING | 3 |
10 | 37223KSP911 | SOCKET COMP. | 1 |
11 | 37250KSP911 | TACHOMETER COMP. | 1 |
12 | 37300KSP912 | METER COMP., FUEL | 1 |
13 | 37305KE5008 | SCREW-WASHER, 3X22 | 3 |
14 | 37305MAW621 | SCREW-WASHER, 4X12 | 2 |
15 | 37312KB7008 | GROMMET, COMBINATION SWITCH | 1 |
16 | 44831KSP900 | CABLE, INNER(###) | 1 |
17 | 86150KPG901 | EMBLEM, PRODUCT(MARUI) | 1 |
18 | 86150KPG902 | EMBLEM, PRODUCT(UEHARA) | 1 |
19 | 90109MZ5008 | SCREW, TAPPING, 4X14 | 1 |
20 | 90133SL9003 | SCREW-WASHER, 3X18 | 3 |
21 | 90525030000 | WASHER B, HANDLE HOLDER SETTING | 3 |
22 | 91352671003 | O-RING, 8.5X1.5(ARAI) | 1 |
23 | 9390322420 | SCREW, TAPPING, 3X16 | 6 |
24 | 94001060000S | NUT, HEX., 6MM | 3 |
25 | 44830KSP901 | CABLE COMP., SPEEDOMETER | 1 |
