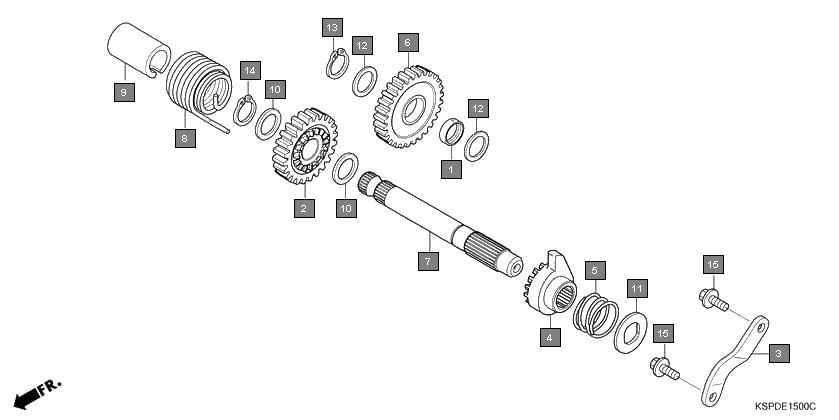

Motorcycles CB Unicorn CBF1506 Engine Kick starter spindle
Ref.No. Part No. Description Oty
1 23427KSP910 BUSH, 17X20.5X8.0 1
2 28211KRM840 PINION, KICK STARTER(24T) 1
3 28215KRM840 PLATE, KICK STOPPER 1
4 28221KRM840 RATCHET, STARTER 1
5 28223KRM840 SPRING, RATCHET 1
6 28231KRM840 GEAR, KICK STARTER IDLE(29T) 1
7 28251KSP911 SPINDLE, KICK STARTER 1
8 28261KRM840 SPRING, KICK RETURN 1
9 28282KRM840 COLLAR, KICK SPRING 1
10 90451KRM840 WASHER, THRUST, 16MM 2
11 90455KSP910 WASHER, SPLINE, 14MM 1
12 90452GB4770 WASHER, THRUST, 17MM 2
13 90602KRM840 CIRCLIP, EXTERNAL, 17MM 1
14 9451016000 CIRCLIP, EXTERNAL, 16MM 1
15 957010601600 BOLT, FLANGE, 6X16 2
