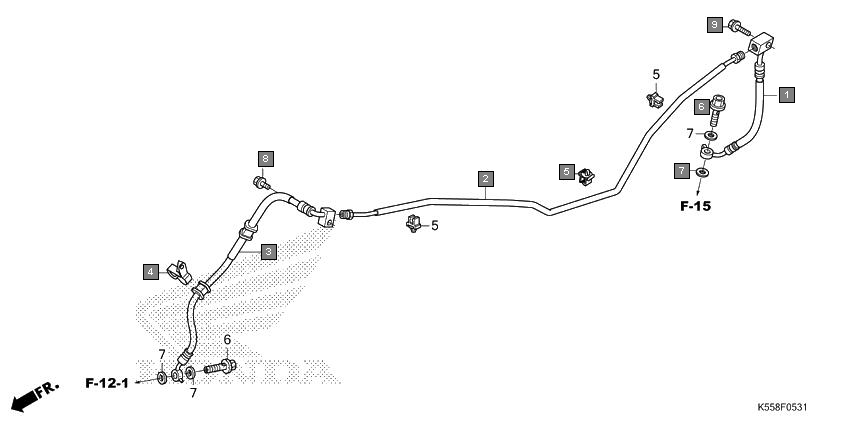

Motorcycles Livo CBF110SBK Frame Brake hose/brake pipe
Ref.No. Part No. Description Oty
1 43310K55981 HOSE COMP., RR. BRAKE 1
2 45127K55980 PIPE COMP., FR. BRAKE 1
3 45128K55981 HOSE COMP. B, FR. BRAKE 1
4 45157K55980 CLAMPER B, FR. BRAKE HOSE 1
5 46391SDAA01 CLIP G, BRAKE PIPE 3
6 90145GW3981 BOLT, OIL, 10X22 2
7 90545300000 WASHER, OIL BOLT 4
8 960010601600 BOLT, FLANGE, 6X16 1
9 960010602500 BOLT, FLANGE, 6X25 1
