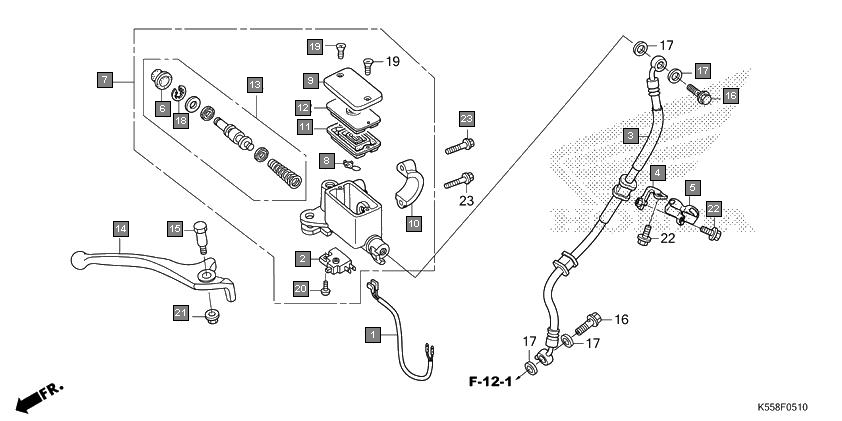

Motorcycles Livo CBF110SBK Frame Front brake master cylinder(cbs)
Ref.No. Part No. Description Oty
1 32102KTE600 SUB CORD 1
2 35340KSPB51 SWITCH ASSY., FR. STOP 1
3 45126K55981 HOSE COMP. A, FR. BRAKE 1
4 45155K55980 STAY, BRAKE HOSE CLAMPER 1
5 45156K55980 CLAMPER A, FR. BRAKE HOSE 1
6 45504410003 BOOT COMP. 1
7 45510K21921 CYLINDER SUB ASSY., FR. BRAKE MASTER(NISSIN) 1
8 45512MA6006 PROTECTOR 1
9 45513HA2006 CAP, MASTER CYLINDER 1
10 45517166006 HOLDER, MASTER CYLINDER 1
11 45520GE2006 DIAPHRAGM 1
12 45521K21901 PLATE, DIAPHRAGM 1
13 45530KVY911 CYLINDER SET, MASTER 1
14 53175KET921 LEVER, R. STEERING HANDLE 1
15 90114KGH900 BOLT, HANDLE LEVER PIVOT 1
16 90145GW3981 BOLT, OIL, 10X22 2
17 90545300000 WASHER, OIL BOLT 4
18 90651MA5671 CIRCLIP 1
19 93600040121G SCREW, FLAT, 4X12 2
20 938930401217 SCREW-WASHER, 4X12 1
21 9405006000 NUT, FLANGE, 6MM 1
22 960010601200 BOLT, FLANGE, 6X12 2
23 960010602200 BOLT, FLANGE, 6X22 2
