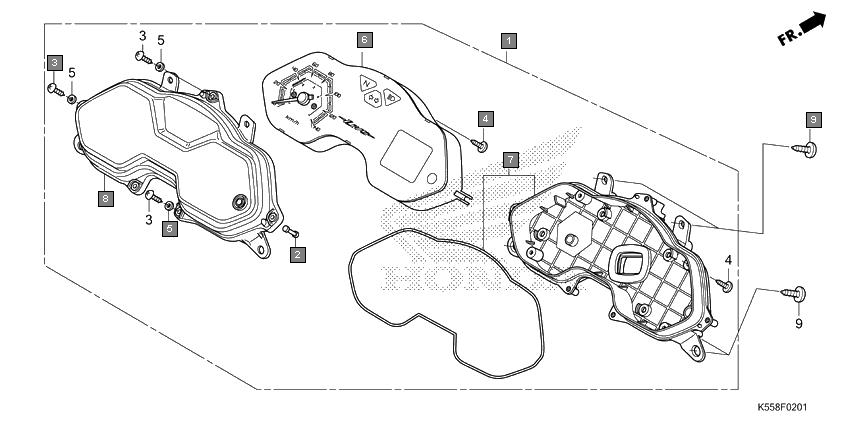

Motorcycles Livo CBF110SBK Frame Meter(2)
Ref.No. Part No. Description Oty
1 37100K55951 METER ASSY., COMBINATION(KPH). 1
2 37202K55951 ROD, SWITCH EXTENSION 1
3 37203K55951 SCREW, TAPPING, 4X15 5
4 37204K55951 SCREW, TAPPING, 4X11 8
5 37205K55951 WASHER 5
6 37210K55951 SPEEDOMETER COMP.(KPH) 1
7 37212K55951 CASE ASSY., UNDER 1
8 37213K55951 LENS ASSY 1
9 9390335310 SCREW, TAPPING, 5X16 4
