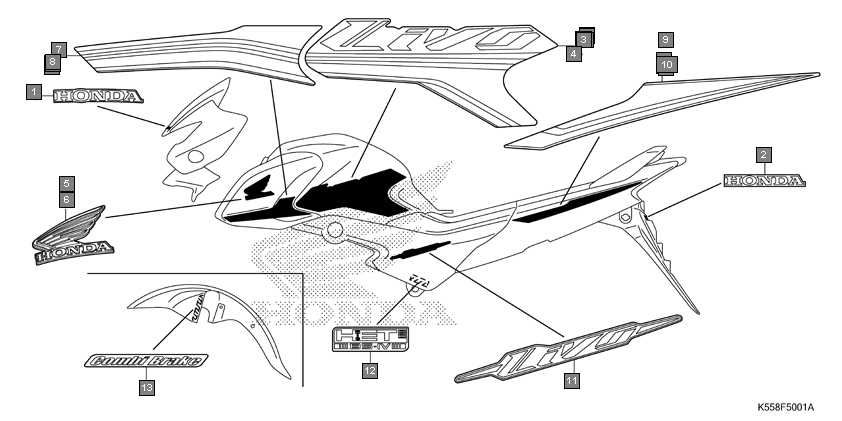

Motorcycles Livo CBF110SBK Frame Mark/stripe
Ref.No. Part No. Description Oty
1 86101K55600ZA MARK, HONDA(65MM) *TYPE1* 1
2 86102K55600ZA MARK, HONDA(65MM)*TYPE1* 1
3 86171K55960ZE STRIPE, R. FUEL TANK *TYPE2* 1
4 86171K55960ZC STRIPE, R. FUEL TANK *TYPE4* 1
5 86171K55960ZB STRIPE, R. FUEL TANK *TYPE5* 1
6 86171K55960ZD STRIPE, R. FUEL TANK *TYPE3* 1
7 86171K55960ZA STRIPE, R. FUEL TANK *TYPE6* 1
8 86171K55960ZF STRIPE, R. FUEL TANK *TYPE1* 1
9 86172K55960ZC STRIPE, L. FUEL TANK *TYPE4* 1
10 86172K55960ZD STRIPE, L. FUEL TANK *TYPE3* 1
11 86172K55960ZF STRIPE, L. FUEL TANK *TYPE1* 1
12 86172K55960ZB STRIPE, L. FUEL TANK *TYPE5* 1
13 86172K55960ZA STRIPE, L. FUEL TANK *TYPE6* 1
14 86172K55960ZE STRIPE, L. FUEL TANK *TYPE2* 1
15 86201K55600 EMBLEM, R. WING(95MM) 1
16 86202K55600 EMBLEM, L. WING(95MM) 1
17 86501K55960ZA STRIPE, R. OUTER SHROUD *TYPE6* 1
18 86501K55960ZD STRIPE, R. OUTER SHROUD *TYPE3* 1
19 86501K55960ZC STRIPE, R. OUTER SHROUD *TYPE4* 1
20 86501K55960ZB STRIPE, R. OUTER SHROUD *TYPE5* 1
21 86501K55960ZF STRIPE, R. OUTER SHROUD *TYPE1* 1
22 86501K55960ZE STRIPE, R. OUTER SHROUD *TYPE2* 1
23 86502K55960ZB STRIPE, L. OUTER SHROUD *TYPE5* 1
24 86502K55960ZA STRIPE, L. OUTER SHROUD *TYPE6* 1
25 86502K55960ZF STRIPE, L. OUTER SHROUD *TYPE1* 1
26 86502K55960ZE STRIPE, L. OUTER SHROUD *TYPE2* 1
27 86502K55960ZC STRIPE, L. OUTER SHROUD *TYPE4* 1
28 86502K55960ZD STRIPE, L. OUTER SHROUD *TYPE3* 1
29 86771K55960ZB STRIPE, R. SIDE COWL *TYPE5* 1
30 86771K55960ZF STRIPE, R. SIDE COWL *TYPE1* 1
31 86771K55960ZC STRIPE, R. SIDE COWL *TYPE4* 1
32 86771K55960ZD STRIPE, R. SIDE COWL *TYPE3* 1
33 86771K55960ZE STRIPE, R. SIDE COWL *TYPE2* 1
34 86771K55960ZA STRIPE, R. SIDE COWL *TYPE6* 1
35 86772K55960ZE STRIPE, L. SIDE COWL *TYPE2* 1
36 86772K55960ZF STRIPE, L. SIDE COWL *TYPE1* 1
37 86772K55960ZA STRIPE, L. SIDE COWL *TYPE6* 1
38 86772K55960ZB STRIPE, L. SIDE COWL *TYPE5* 1
39 86772K55960ZD STRIPE, L. SIDE COWL *TYPE3* 1
40 86772K55960ZC STRIPE, L. SIDE COWL *TYPE4* 1
41 86831K55600ZA MARK B, SIDE COVER *TYPE1* 2
42 86833K43900ZA MARK, HET BS 4 *TYPE1* (R SIDE ONLY) 1
43 86611K43900ZB MARK(COMBI BRAKE) *TYPE1* 1
44 86611K43960ZA MARK(COMBI BRAKE) *TYPE1* (R. SIDE ONLY) 1
45 86611K43900ZA MARK(COMBI BRAKE) *TYPE2* 1
