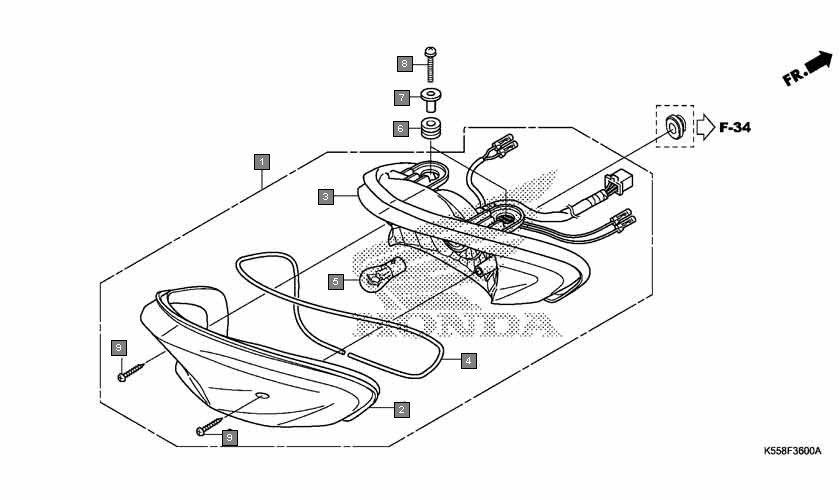

Motorcycles Livo CBF110SBK Frame Taillight
Ref.No. Part No. Description Oty
1 33701K55601 TAILLIGHT UNIT(12V 21/5W) 1
2 33703KWS901 LENS COMP., TAILLIGHT 1
3 33704K55601 BASE COMP., TAILLIGHT 1
4 33705KWS901 PACKING, LENS 1
5 34907KVN901 BULB, TAIL & STOP LIGHT (12V 21/5W) 1
6 61103357000 RUBBER, FR. FENDER MOUNTING 2
7 61104KM7910 COLLAR, FAIRING SETTING 2
8 93500050220G SCREW, PAN, 5X22 2
9 9390124580 SCREW, TAPPING, 4X20 2
