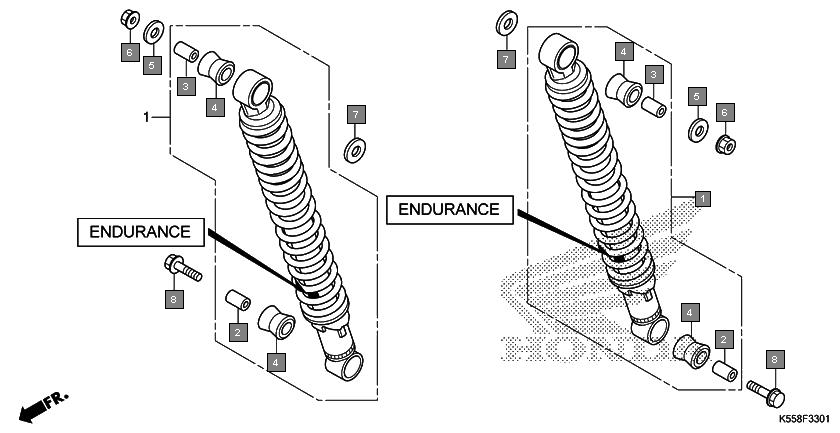

Motorcycles Livo CBF110SBK Frame Rear cushion(endurance)
Ref.No. Part No. Description Oty
1 52400K55951 CUSHION ASSY., RR.(ENDURANCE) 2
2 52485K23902 COLLAR, RUBBER BUSH(ENDURANCE) 2
3 52486K23902 COLLAR, RUBBER BUSH(ENDURANCE) 2
4 52495K23902 BUSH, RUBBER(ENDURANCE) 4
5 90551KTE910 WASHER, SPECIAL, 10MM 2
6 9405010000 NUT, FLANGE, 10MM 2
7 9410112000 WASHER, PLAIN, 12MM 2
8 958021003500 BOLT, FLANGE, 10X35 2
9 958011003500 BOLT, FLANGE, 10X35 2
