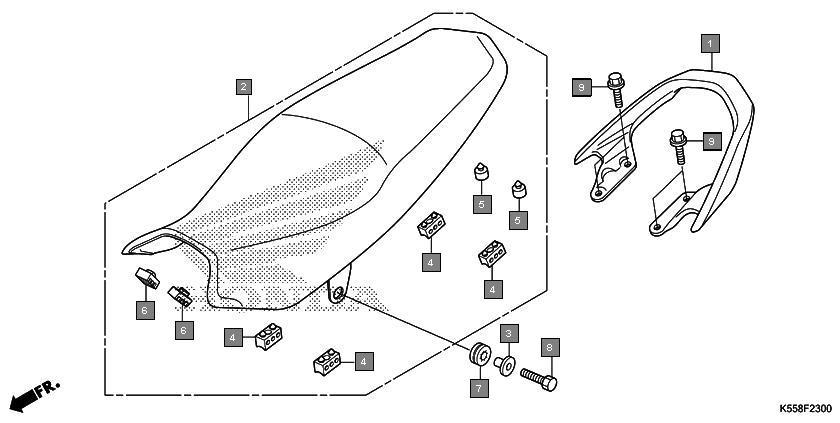

Motorcycles Livo CBF110SBK Frame Seat/rear grip
Ref.No. Part No. Description Oty
1 50400K55600 GRIP, RR. 1
2 77200K55951ZA SEAT ASSY., DOUBLE *TYPE1* 1
3 77201KYY900 COLLAR, SEAT MOUNTING 2
4 77204KYA600 RUBBER A, SEAT SETTING 4
5 77206KPPT00 RUBBER, SEAT CUSHION 2
6 77207KYA600 RUBBER B, SEAT SETTING 2
7 77218KYY900 RUBBER, SEAT STAY 2
8 92101080280A BOLT, HEX., 8X28 2
9 957010801808 BOLT, FLANGE, 8X18 4
