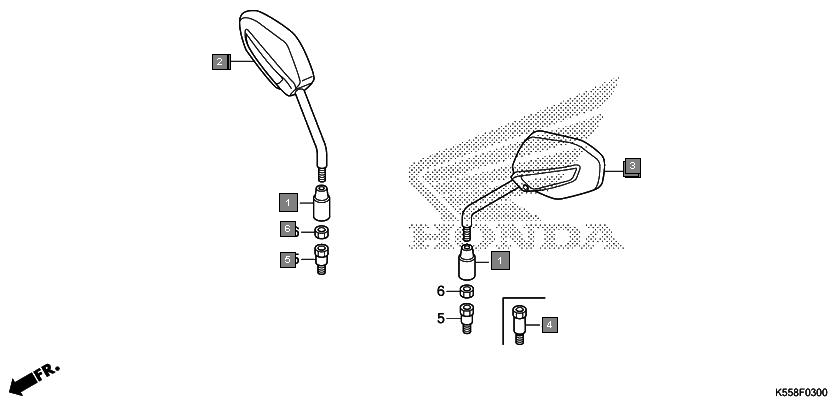

Motorcycles Livo CBF110SBK Frame Mirror
Ref.No. Part No. Description Oty
1 88114198D10 CAP, LOCK NUT 2
2 88210K38941ZA MIRROR COMP., R.*NH1* BLACK 1
3 88210K38941ZC MIRROR COMP, R *PB400R*MOROCCAN BLUE R 1
4 88210K38941ZB MIRROR COMP,R *YR335R*FOSSIL BROWN R 1
5 88220K55911ZC MIRROR COMP., L. *NH1* BLACK 1
6 88220K55911ZA MIRROR COMP., L. *YR335R* FOSSIL BROWN R 1
7 88220K55911ZB MIRROR COMP., L. *PB400R* MOROCCAN BLUE R 1
8 90103K55910 BOLT, ADAPTER, 10MM 1
9 90103K38940 BOLT, ADAPTER, 10MM 1
10 90201MW3620 NUT, HEX., 10MM (LEFT HAND THREAD) 2
