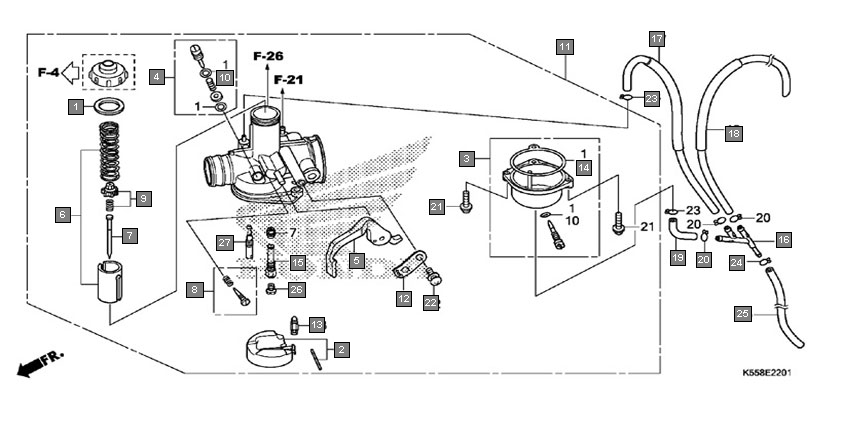

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16010K08901 | GASKET SET | 1 |
| 2 | 16013KRB901 | FLOAT SET | 1 |
| 3 | 16015K63D31 | CHAMBER SET, FLOAT | 1 |
| 4 | 16016KPWH01 | SCREW SET | 1 |
| 5 | 16019K14901 | LEVER COMP., CHOKE | 1 |
| 6 | 16022K63D31 | VALVE SET, THROTTLE | 1 |
| 7 | 16027K55901 | NEEDLE SET, JET | 1 |
| 8 | 16028KYY901 | SCREW SET | 1 |
| 9 | 16037KPH901 | PLATE SET, VALVE | 1 |
| 10 | 16076KPL901 | O-RING | 2 |
| 11 | 16100K55901 | CARBURETOR ASSY(7WN A) | 1 |
| 12 | 16119KZAW01 | PLATE, SETTING | 1 |
| 13 | 16155KRS861 | VALVE COMP., FLOAT | 1 |
| 14 | 16163KWS901 | GASKET, FLOAT CHAMBER | 1 |
| 15 | 16165K55901 | HOLDER, NEEDLE JET | 1 |
| 16 | 16180K63D30 | JOINT, FOUR WAY | 1 |
| 17 | 16199K63D30 | TUBE A, AIR VENT | 1 |
| 18 | 16954K63D30 | TUBE B, AIR VENT | 1 |
| 19 | 16956K63D30 | TUBE, DRAIN | 1 |
| 20 | 90652KWPF00 | CLIP, TUBE(B8) | 3 |
| 21 | 938920401808 | SCREW-WASHER, 4X18 | 2 |
| 22 | 938920501218 | SCREW-WASHER, 5X12 | 1 |
| 23 | 9500202089 | CLIP, TUBE(B8) | 2 |
| 24 | 9500202659 | CLIP, TUBE(B6.5) | 1 |
| 25 | 950053532050 | TUBE, 3.5X320(95005-35001-50M) | 1 |
| 26 | 99101KVT0920 | JET, MAIN, #92 | 1 |
| 27 | 99103KPH0350 | JET, SLOW, #35 | 1 |
