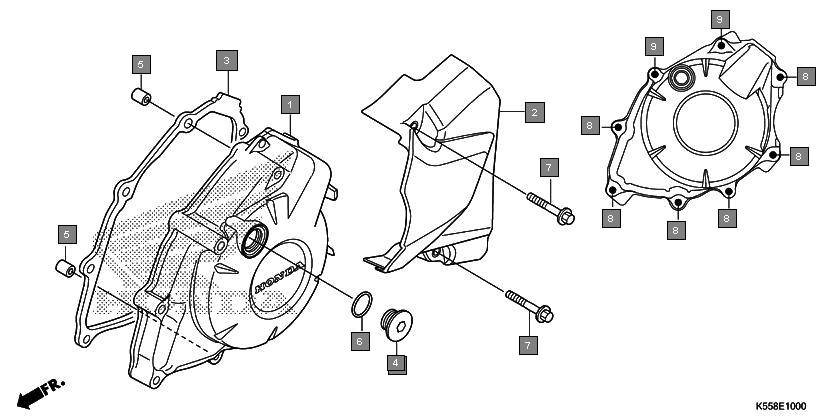

Motorcycles Livo CBF110SBK Engine Left crankcase cover
Ref.No. Part No. Description Oty
1 11341K14960 COVER, L. CRANKCASE 1
2 11360K63D30 COVER COMP., L. RR. 1
3 11395K63D31 GASKET, L. CRANKCASE COVER 1
4 90084K38940 CAP, 14MM 1
5 90702KRM840 DOWEL PIN, 8X14 2
6 91303KRM840 O-RING, 13.8X2.5 1
7 960010603000 BOLT, FLANGE, 6X30 2
8 960010603500 BOLT, FLANGE, 6X35 6
9 960010606000 BOLT, FLANGE, 6X60 2
