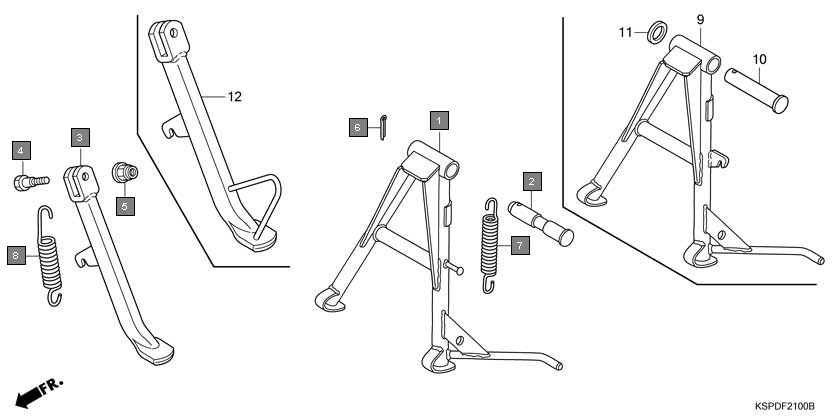

Motorcycles CB Unicorn CBF1505 Frame Stand
Ref.No. Part No. Description Oty
1 50500KSP902 STAND COMP., MAIN 1
2 50526KCT690 SHAFT, MAIN STAND PIVOT 1
3 50530KSP900 BAR COMP., SIDE STAND 1
4 90107GN1010 SCREW, SIDE STAND PIVOT 1
5 90304GE8003 NUT, U, 10MM(FUSE RASHI) 1
6 9420130300 PIN, SPLIT, 3.0X30 1
7 9501471702 SPRING G, MAIN STAND 1
8 9501472102 SPRING A, SIDE STAND 1
