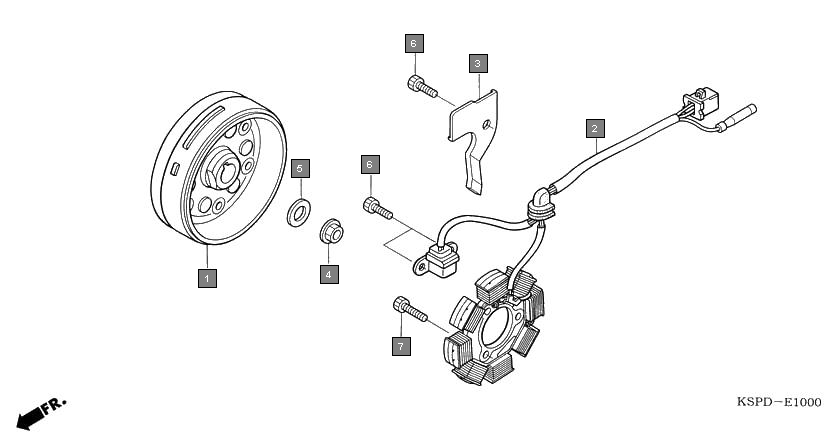

Motorcycles CB Unicorn CBF1505 Engine Generator
Ref.No. Part No. Description Oty
1 31110KSP902 FLYWHEEL COMP. 1
2 31110KSP911 FLYWHEEL COMP. 1
3 31120KSP911 STATOR COMP. 1
4 31120KSP900 STATOR COMP. 1
5 32111KSP910 CLAMPER, A.C. GENERATOR CORD 1
6 90201KRM840 NUT, FLANGE, 14MM 1
7 90501KRM840 WASHER, 14.1X29X2.8 1
8 966000601600 BOLT, SOCKET, 6X16 3
9 966000602500 BOLT, SOCKET, 6X25 3
