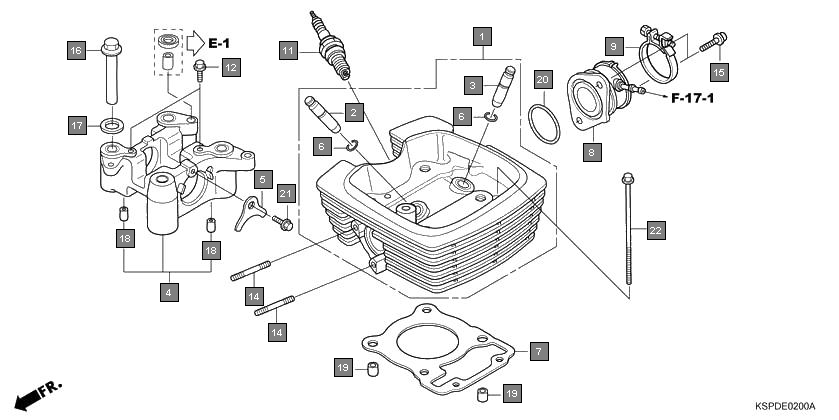

Motorcycles CB Unicorn CBF1505 Engine Cylinder head(cbf1505/m5/6/m6)
Ref.No. Part No. Description Oty
1 12200KSP910 HEAD COMP., CYLINDER 1
2 12204KRM305 GUIDE, VALVE(O.S.)(EXHAUST SIDE) 1
3 12205KSP305 GUIDE, IN. VALVE(O.S.) 1
4 12210KSP910 HOLDER COMP., CAMSHAFT 1
5 12212KRM840 PLATE, STOPPER 1
6 12213KSP910 CLIP, VALVE GUIDE 2
7 12251KSP910 GASKET, CYLINDER HEAD 1
8 16210KSP910 INSULATOR COMP., CARBURETOR 1
9 16217KSP910 BAND, INSULATOR 1
10 31916KRM841 PLUG, SPARK(CPR8EA-9)(NGK) 1
11 31926KRM841 PLUG, SPARK(CPR9EA-9)(NGK) 1
12 90002KRM840 BOLT, FLANGE, 5X14 2
13 90040KSP910 BOLT, STUD, 8X22 2
14 90091KRM840 BOLT, FLANGE SOCKET, 6X22 2
15 90306KRM840 NUT, CYLINDER HEAD 4
16 90404KRM840 WASHER, PLAIN, 12MM 4
17 90704KRM840 DOWEL PIN, 6X10 2
18 9430206100 DOWEL PIN, 6X10 2
19 9430306100 DOWEL PIN, 6X10 2
20 91106KSP910 DOWEL PIN, 10X12 2
21 91304KRM840 O-RING, 33.5X3.0 1
22 957010601400 BOLT, FLANGE, 6X14 1
23 958010610500 BOLT, FLANGE, 6X105 2
