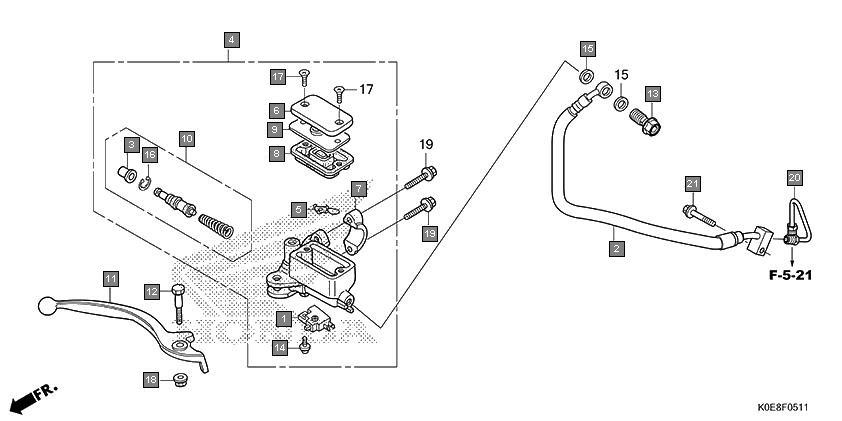

Motorcycles XBlade CBF160FSK Frame Front brake master cylinder(cbf160fsk-3id)
Ref.No. Part No. Description Oty
1 35340KSPB51 SWITCH ASSY., FR. STOP 1
2 45126K0ED41 HOSE COMP. A, FR. BRAKE 1
3 45504410003 BOOT COMP. 1
4 45510K21901 CYLINDER SUB ASSY., FR. BRAKE MASTER(NISSIN) 1
5 45512MA6006 PROTECTOR 1
6 45513HA2006 CAP, MASTER CYLINDER 1
7 45517166006 HOLDER, MASTER CYLINDER 1
8 45520GE2006 DIAPHRAGM 1
9 45521K21901 PLATE, DIAPHRAGM 1
10 45530471831 CYLINDER SET, MASTER 1
11 53175KSPB51 LEVER, R. STEERING HANDLE 1
12 90114166006 BOLT, HANDLE LEVER PIVOT 1
13 90145GAZ981 BOLT, OIL, 10X22 1
14 90508K21921 SCREW-WASHER, 4X12 1
15 90545300000 WASHER, OIL BOLT 2
16 90651MA5671 CIRCLIP 1
17 93600040121G SCREW, FLAT, 4X12 2
18 9405006000 NUT, FLANGE, 6MM 1
19 960010602200 BOLT, FLANGE, 6X22 2
20 45127K0ED40 PIPE COMP. B, FR. BRAKE 1
21 960010602807 BOLT, FLANGE, 6X28 1
