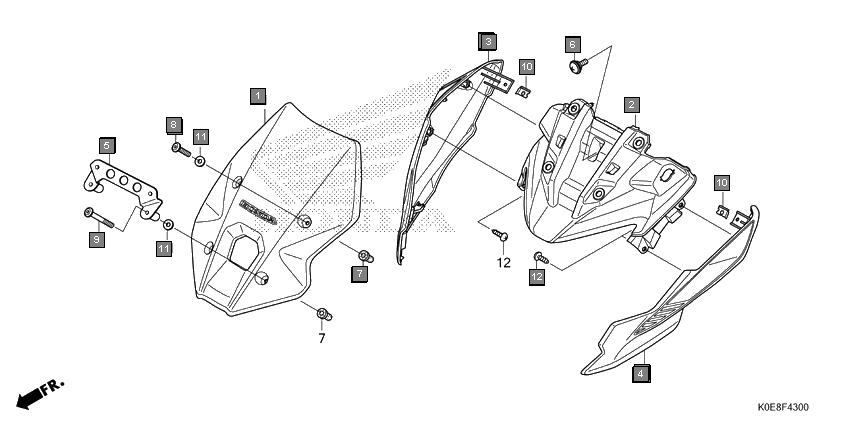

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 61300K0ED00ZA | VISOR SET, FR.(WL) *TYPE1* | 1 |
2 | 61304K0ED00 | COVER, UPPER | 1 |
3 | 61306K0ED00ZA | GARNISH SET, R. FR.(WL) *TYPE5* | 1 |
4 | 61306K0ED00ZD | GARNISH SET, R. FR.(WL) *TYPE2* | 1 |
5 | 61306K0ED00ZE | GARNISH SET, R. FR.(WL) *TYPE1* | 1 |
6 | 61306K0ED00ZC | GARNISH SET, R. FR.(WL) *TYPE3* | 1 |
7 | 61306K0ED00ZB | GARNISH SET, R. FR.(WL) *TYPE4* | 1 |
8 | 61316K0ED00ZC | GARNISH SET, L. FR.(WL) *TYPE3* | 1 |
9 | 61316K0ED00ZA | GARNISH SET, L. FR.(WL) *TYPE5* | 1 |
10 | 61316K0ED00ZE | GARNISH SET, L. FR.(WL) *TYPE1* | 1 |
11 | 61316K0ED00ZD | GARNISH SET, L. FR.(WL) *TYPE2* | 1 |
12 | 61316K0ED00ZB | GARNISH SET, L. FR.(WL) *TYPE4* | 1 |
13 | 64315K0ED00 | STAY, FR. NUMBER PLATE | 1 |
14 | 90101GE0000 | SCREW, HINGE PATCH | 1 |
15 | 90111MM9000 | NUT, COWL SETTING, 5MM | 4 |
16 | 90134K0ED00 | SCREW, PAN, 5X18 | 2 |
17 | 90135K0ED00 | SCREW, PAN, 5X45 | 2 |
18 | 90320KTE600 | NUT, SPRING, 5MM | 2 |
19 | 90504964000 | WASHER, THRUST, 5MM | 4 |
20 | 9390325220 | SCREW, TAPPING, 5X12 | 4 |
