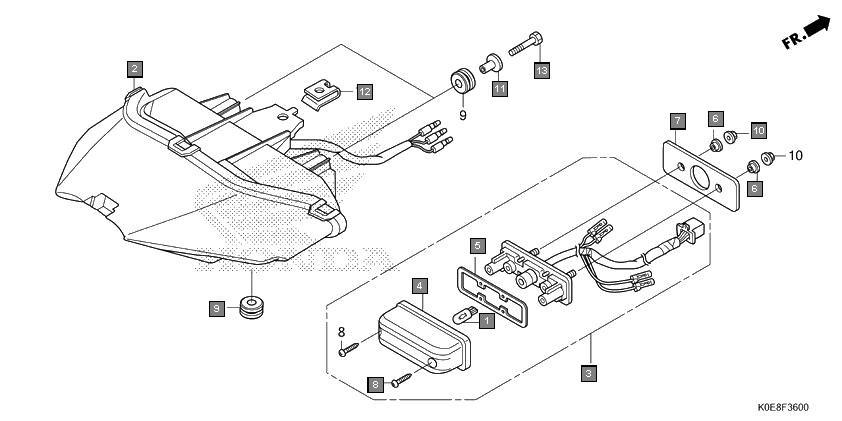

Motorcycles XBlade CBF160FSK Frame Taillight
Ref.No. Part No. Description Oty
1 33301KYJ901 BULB, WEDGE BASE(T10 12V 5W) 1
2 33701K0ED01 TAILLIGHT UNIT 1
3 33720K0ED01 LIGHT ASSY., LICENSE(12V 5W) 1
4 33723K0ED01 COVER COMP. 1
5 33729KSPB01 PACKING, LENS 1
6 80202KVE900 COLLAR, LICENSE LIGHT 2
7 80203KVE900 RUBBER, LICENSE LIGHT 1
8 9390124480 SCREW, TAPPING, 4X16 2
9 61103357000 RUBBER, FR. FENDER MOUNTING 3
10 9405005000 NUT, FLANGE, 5MM 2
11 61104KM7910 COLLAR, FAIRING SETTING 2
12 90320KTE600 NUT, SPRING, 5MM 1
13 92101050250H BOLT, HEX., 5X25 2
