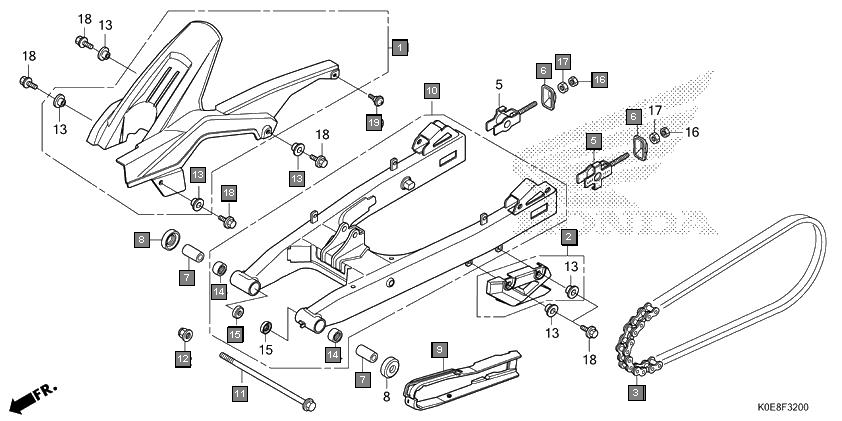

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 40511K0ED00 | CASE, DRIVE CHAIN | 1 |
| 2 | 40521K0ED00 | COVER, DRIVE CHAIN UNDER | 1 |
| 3 | 40530K0ED21 | CHAIN, DRIVE(LGB) (R428OR-130LE) | 1 |
| 4 | 40543K0ED00 | ADJUSTER COMP., CHAIN | 2 |
| 5 | 40546K38940 | CAP, RR. FORK END | 2 |
| 6 | 52141K21900 | COLLAR, SWINGARM PIVOT | 2 |
| 7 | 52144GC4003 | DUST SEAL, 31X40.5X7.1(ARAI) | 2 |
| 8 | 52170K0ED00 | SLIDER, CHAIN | 1 |
| 9 | 52200K0ED00 | SWINGARM SUB ASSY., RR. | 1 |
| 10 | 90121KSP900 | BOLT, SWINGARM PIVOT | 1 |
| 11 | 90305KVN901 | NUT, FLANGE, 14MM (SIMMONDS MARSHALL) | 1 |
| 12 | 90522KSP860 | COLLAR, CHAIN CASE SETTING | 6 |
| 13 | 91071KSP901 | BEARING, NEEDLE, 20X26X20 | 2 |
| 14 | 91254KS6003 | DUST SEAL, 20X26X4.5(ARAI) | 2 |
| 15 | 94001060000S | NUT, HEX., 6MM | 2 |
| 16 | 90302KBP900 | NUT, SPECIAL, 6MM | 2 |
| 17 | 957010601207 | BOLT, FLANGE, 6X12 | 6 |
| 18 | 90101GE0000 | SCREW, HINGE PATCH | 1 |
