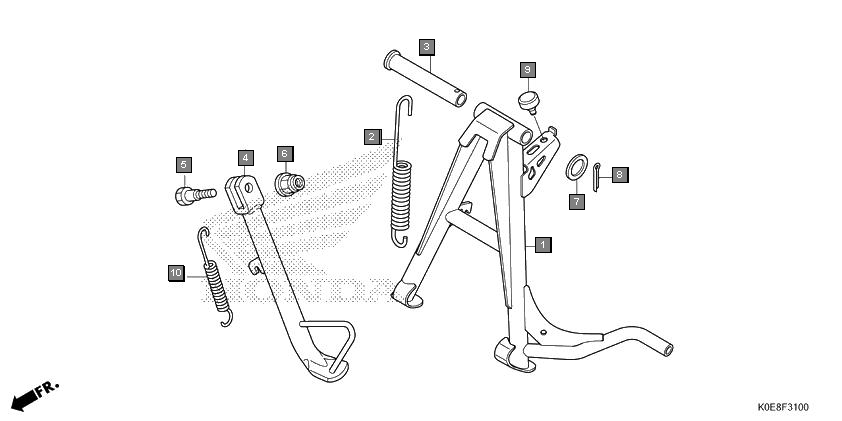

Motorcycles XBlade CBF160FSK Frame Stand
Ref.No. Part No. Description Oty
1 50500K0ED00 STAND COMP., MAIN 1
2 50520K0ED00 SPRING, MAIN STAND 1
3 50526K38940 SHAFT, MAIN STAND 1
4 50530K0ED00 BAR COMP., SIDE STAND 1
5 90107GN1010 SCREW, SIDE STAND PIVOT 1
6 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 1
7 90521028000 WASHER, 17X22 1
8 9420130300 PIN, SPLIT, 3.0X30 1
9 9501162000 RUBBER B, STAND STOPPER 1
10 9501472102 SPRING A, SIDE STAND 1
