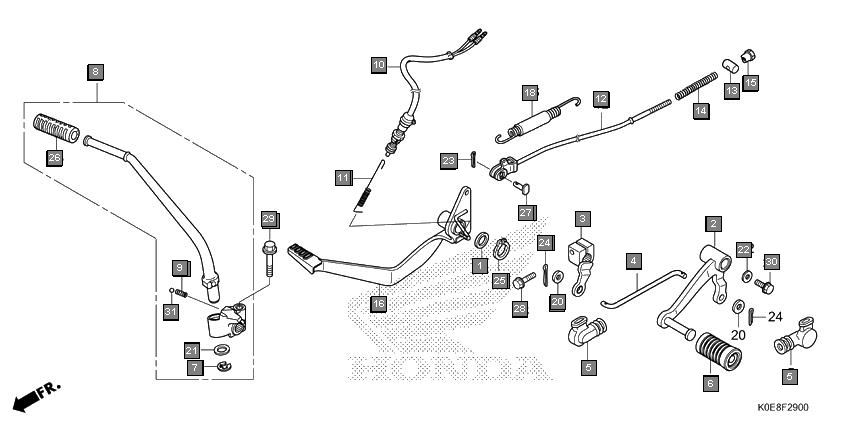

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 90557230000 | WASHER, 15.2X25 | 1 |
| 2 | 24701K0ED00 | PEDAL, GEAR CHANGE | 1 |
| 3 | 24711K0ED00 | ARM, GEAR CHANGE | 1 |
| 4 | 24720K0ED00 | ROD, TIE | 1 |
| 5 | 24721GS3000 | COVER, CHANGE PEDAL | 2 |
| 6 | 24781KSP860 | RUBBER, CHANGE PEDAL | 1 |
| 7 | 28293333000 | CLIP, KICK STARTER ARM | 1 |
| 8 | 28300K0ED00 | ARM ASSY., KICK STARTER | 1 |
| 9 | 28333KK0000 | SPRING, KICK STARTER | 1 |
| 10 | 35350K38901 | SWITCH ASSY., RR. STOP | 1 |
| 11 | 35357KSP900 | SPRING, STOP SWITCH | 1 |
| 12 | 43451K0ED00 | ROD COMP., RR. BRAKE | 1 |
| 13 | 43455KSP900 | JOINT, BRAKE ARM | 1 |
| 14 | 43456KSP900 | SPRING, BRAKE ROD | 1 |
| 15 | 43459KSP900 | NUT, BRAKE ROD ADJUSTING | 1 |
| 16 | 46500K0ED00 | PEDAL COMP., RR. BRAKE | 1 |
| 17 | 46510K21900 | SPRING SET, BRAKE PEDAL | 1 |
| 18 | 90502K43900 | WASHER, PLAIN, 7MM | 2 |
| 19 | 90505KRM860 | WASHER, 15.5X22 | 1 |
| 20 | 9410306700 | WASHER, PLAIN, 6MM | 1 |
| 21 | 9420120120 | PIN, SPLIT, 2.0X12 | 1 |
| 22 | 9420120150 | PIN, SPLIT, 2.0X15 | 2 |
| 23 | 90651K38900 | CIRCLIP, EXTERNAL, 15MM | 1 |
| 24 | 9501151000 | RUBBER A, KICK STARTER | 1 |
| 25 | 9501553000 | PIN C, JOINT | 1 |
| 26 | 957010602007 | BOLT, FLANGE, 6X20 | 1 |
| 27 | 957010804007 | BOLT, FLANGE, 8X40 | 1 |
| 28 | 960010601207 | BOLT, FLANGE, 6X12 | 1 |
| 29 | 9621108000 | BALL, STEEL, #8(1/4) | 1 |
