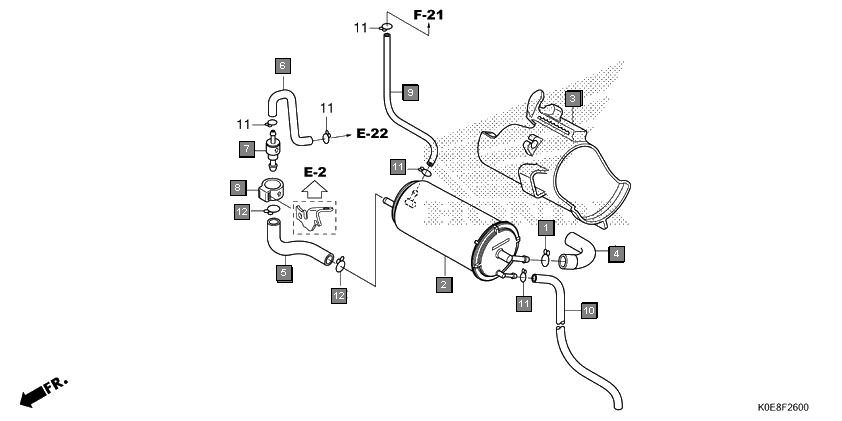

Motorcycles XBlade CBF160FSK Frame Canister
Ref.No. Part No. Description Oty
1 16163K43900 CLIP 1
2 17310K38941 CANISTER COMP. 1
3 17311K43900 RUBBER, CANISTER 1
4 17412K0ED00 TUBE, AIR 1
5 17413K43900 TUBE, CANISTER PURGE 1
6 17417K43900 TUBE, CARBURETOR PURGE 1
7 17440K43901 VALVE, ONE WAY 1
8 17441K43900 RUBBER, ONE WAY VALVE 1
9 950014526040 TUBE, FUEL, 4.5X260 (95001-45001-60M) 1
10 950014549040 TUBE, FUEL, 4.5X490 (95001-45001-60M) 1
11 90652KWPF00 CLIP, TUBE(B8) 5
12 9500202120 CLIP, TUBE(B12) 2
