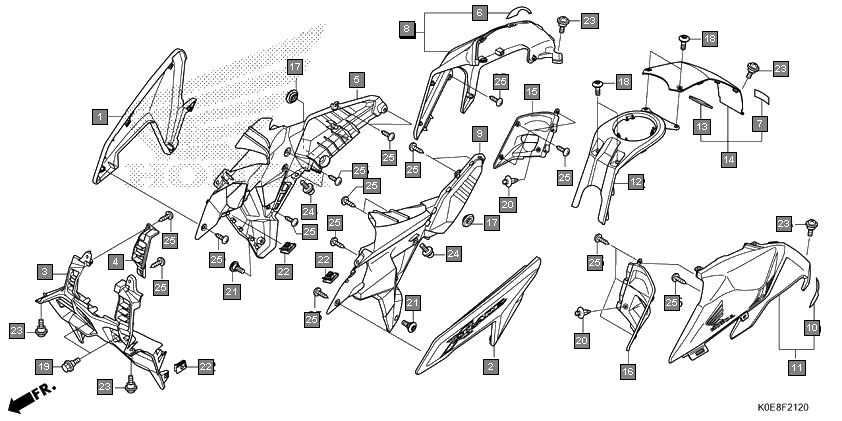

Motorcycles XBlade CBF160FSK Frame Fuel tank cover
Ref.No. Part No. Description Oty
1 50240K0ED00ZF SHROUD SET, R. GARNISH(WL) *NHB05P* PEARL IGNEOUS BLACK 1
2 50250K0ED00ZF SHROUD SET, L. GARNISH(WL) *NHB05P* PEARL IGNEOUS BLACK 1
3 50271K0ED00 GARNISH, SHROUD CENTER 1
4 64412K0ED00 COVER, R. FUEL TANK(LOWER) 1
5 64413K0ED00 FILM, R. TANK COVER PROTECTOR 1
6 64414K0ED00 FILM, TANK COVER PROTECTOR 1
7 64415K0ED00ZA COVER ASSY., R. FUEL TANK(WL) *TYPE5* 1
8 64415K0ED00ZC COVER ASSY., R. FUEL TANK(WL) *TYPE3* 1
9 64415K0ED00ZB COVER ASSY., R. FUEL TANK(WL) *TYPE4* 1
10 64415K0ED00ZD COVER ASSY., R. FUEL TANK(WL) *TYPE2* 1
11 64415K0ED00ZE COVER ASSY., R. FUEL TANK(WL) *TYPE1* 1
12 64422K0ED00 COVER, L. FUEL TANK(LOWER) 1
13 64423K0ED00 FILM, L. TANK COVER PROTECTOR 1
14 64425K0ED00ZC COVER ASSY., L. FUEL TANK(WL)*TYPE3* 1
15 64425K0ED00ZA COVER ASSY., L. FUEL TANK(WL) *TYPE5* 1
16 64425K0ED00ZE COVER ASSY., L. FUEL TANK(WL)*TYPE1* 1
17 64425K0ED00ZD COVER ASSY., L. FUEL TANK(WL)*TYPE2* 1
18 64425K0ED00ZB COVER ASSY., L. FUEL TANK(WL)*TYPE4* 1
19 64431K0ED00 COVER A, FUEL TANK CENTER 1
20 64432K43900 SPONGE, FUEL TANK CENTER COVER RUBBER 1
21 64440K0ED00ZA COVER ASSY. B, FUEL TANK *R355M* CENTER IMPERIAL RED METALLIC 1
22 64440K0ED00ZB COVER ASSY. B, FUEL TANK *NHB05P* PEARL IGNEOUS BLACK 1
23 64461K0ED00 COVER, R. FUEL TANK INNER 1
24 64471K0ED00 COVER, L. FUEL TANK INNER 1
25 83551376000 GROMMET, SIDE COVER 2
26 90107K0ED00 SCREW, PAN, 5X12 4
27 90111187000 BOLT, FLANGE, 6MM 2
28 90116SP0003 CLIP, BUMPER SEAL 2
29 90134KPPT00 SCREW, PAN, 5X14 2
30 90677KANT00 NUT, CLIP, 5MM 4
31 91509GE2760 SCREW, PAN, 5X11.5 5
32 938940501007 SCREW-WASHER, 5X10 2
33 9390325280 SCREW, TAPPING, 5X12 20
