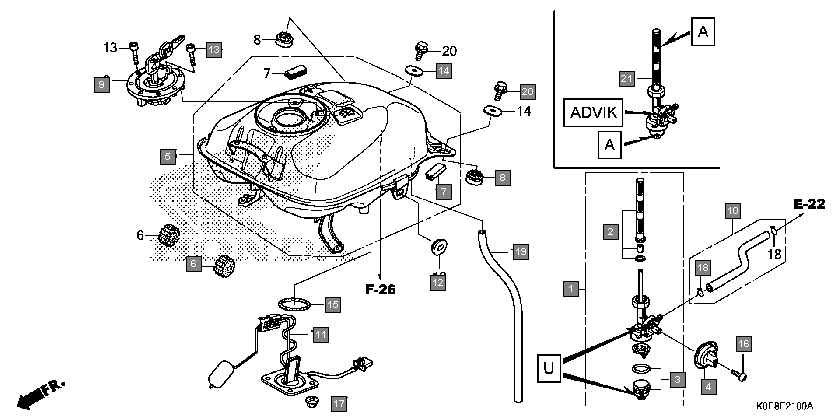

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16950K0ED01 | COCK ASSY., FUEL | 1 |
| 2 | 16952K0ED01 | SCREEN SET, FUEL STRAINER | 1 |
| 3 | 16953K43900 | CUP SET, FUEL STRAINER | 1 |
| 4 | 16955K0ED00 | LEVER, FUEL COCK | 1 |
| 5 | 17530K0ED00 | TANK SUB ASSY., FUEL | 1 |
| 6 | 17611KFN850 | CUSHION, FR. FUEL TANK | 2 |
| 7 | 17612K43900 | RUBBER, BODY COVER SETTING | 2 |
| 8 | 17613K43900 | CUSHION, FUEL TANK | 2 |
| 9 | 17620KSP862 | CAP COMP., FUEL FILLER | 1 |
| 10 | 17681K0ED00 | TUBE, FUEL | 1 |
| 11 | 37800K0ED01 | FUEL UNIT | 1 |
| 12 | 83551300000 | GROMMET, AIR CLEANER CASE | 2 |
| 13 | 90111KSP860 | BOLT, SOCKET, 4X21 | 3 |
| 14 | 90136428870 | WASHER, TANK SETTING | 2 |
| 15 | 91351K21900 | O-RING, 39.5X5 | 1 |
| 16 | 93500040350G | SCREW, PAN, 4X35 | 1 |
| 17 | 9405006000 | NUT, FLANGE, 6MM | 4 |
| 18 | 9500202100 | CLIP, TUBE(B10) | 2 |
| 19 | 950058068020 | TUBE, 8X680(95005-80001-20M) | 1 |
| 20 | 957010601200 | BOLT, FLANGE, 6X12 | 2 |
| 21 | 16950K0ED02 | COCK ASSY., FUEL(ADVIK) | 1 |
