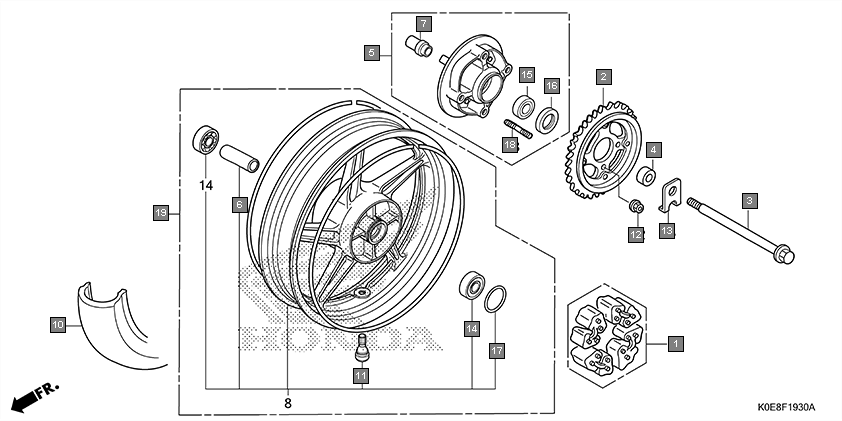

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 06410KSP900 | DAMPER SET, WHEEL | 1 |
| 2 | 41200K0ED00 | SPROCKET COMP., FINAL DRIVEN (45T) | 1 |
| 3 | 42301K0ED00 | AXLE, RR. WHEEL | 1 |
| 4 | 42311K0ED00 | COLLAR, L. RR. WHEEL SIDE | 1 |
| 5 | 42615K0ED20ZA | FLANGE SUB ASSY., FINAL DRIVEN *NH105* MAT BLACK(#15-#20) | 1 |
| 6 | 42620K0ED00 | COLLAR, RR. WHEEL DISTANCE | 1 |
| 7 | 42303K0ED00 | SLEEVE, RR. WHEEL | 1 |
| 8 | 42711K0ED01 | TIRE, RR.(MRF) (130/70-17 M/C 62P) | 1 |
| 9 | 42711K0ED21 | TIRE, RR.(TVS) (130/70-17 M/C 62P) | 1 |
| 10 | 42753K24G11 | VALVE, RIM(ACCURA) | 1 |
| 11 | 42753KWF901 | VALVE, RIM(TRITON) | 1 |
| 12 | 90304KTE911 | NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) | 4 |
| 13 | 90560KSP900 | WASHER, R. RR. AXLE | 1 |
| 14 | 91051KPPN01 | BEARING, RADIAL BALL, 6302U (FAG) | 2 |
| 15 | 91053K21901 | BEARING, RADIAL BALL, 6004UU (NEI) | 1 |
| 16 | 91257230003 | OIL SEAL, 28X42X7(ARAI) | 1 |
| 17 | 91352KSP900 | O-RING, 51X2 | 1 |
| 18 | 90128K45N00 | BOLT, STUD, 10X22 | 4 |
| 19 | 42650K0ED20ZD | WHEEL SUB ASSY., RR.(WL) *TYPE2* | 1 |
| 20 | 42650K0ED20ZE | WHEEL SUB ASSY., RR.(WL) *TYPE1* | 1 |
| 21 | 42650K0ED20ZC | WHEEL SUB ASSY., RR.(WL) *TYPE3* | 1 |
| 22 | 42650K0ED20ZB | WHEEL SUB ASSY., RR.(WL) *TYPE4* | 1 |
