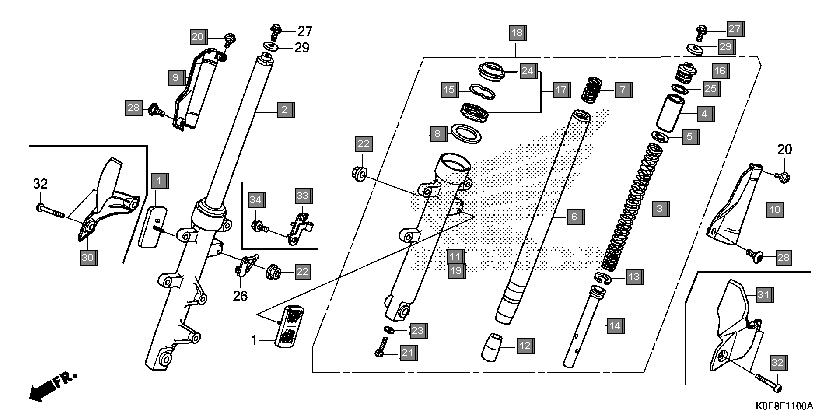

Motorcycles XBlade CBF160FSK Frame Front fork
Ref.No. Part No. Description Oty
1 33740KZK951 REFLECTOR, FR. SIDE REFLEX 2
2 51400K0ED21 FORK ASSY., R. FR.(ENDURANCE) 1
3 51401K0ED01 SPRING, FR. FORK 2
4 51403K0ED01 SPACER, TUBE 2
5 51404K23902 JOINT, SPRING 2
6 51410K0ED01 PIPE COMP., FR. FORK 2
7 51412K0ED01 SPRING, REBOUND 2
8 51413K0ED01 RING, BACK UP 2
9 61150K0ED00 COVER, R. FORK 1
10 61160K0ED00 COVER, L. FORK 1
11 51420K0ED21 CASE COMP., R. FR. BOTTOM 1
12 51432K0ED01 PIECE, OIL LOCK 2
13 51437K23902 RING, PISTON 2
14 51440K0ED01 PIPE, SEAT 2
15 90651K0ED01 RING, OIL SEAL STOPPER 2
16 90123K23902 BOLT A, FR. FORK 2
17 51490K0ED01 SEAL SET, FR. FORK 2
18 51500K0ED01 FORK ASSY., L. FR.(ENDURANCE) 1
19 51520K0ED01 CASE COMP., L. FR. BOTTOM 1
20 90101GE0000 SCREW, HINGE PATCH 2
21 90116K23902 BOLT, SOCKET, 8MM 2
22 90301KWN901 NUT, U, 5MM 2
23 90544K23902 WASHER, SPECIAL, 8MM 2
24 51425K0ED01 SEAL, DUST 2
25 91351K23902 O-RING 2
26 90123KRM860 BOLT, FR. FORK 2
27 90134KPPT00 SCREW, PAN, 5X14 2
28 90521KSP900 WASHER, 10.3MM 2
29 61115K0ED20ZA COVER, R. FR. FORK *NH303M* MAT AXIS GRAY METALLIC 1
30 61125K0ED20ZA COVER, L. FR. FORK *NH303M* MAT AXIS GRAY METALLIC 1
31 90131K0ED20 SCREW, PAN, 6X36 4
32 38516K0ED20 CLAMPER, SPEED SENSOR CORD 1
33 957010601207 BOLT, FLANGE, 6X12 1
