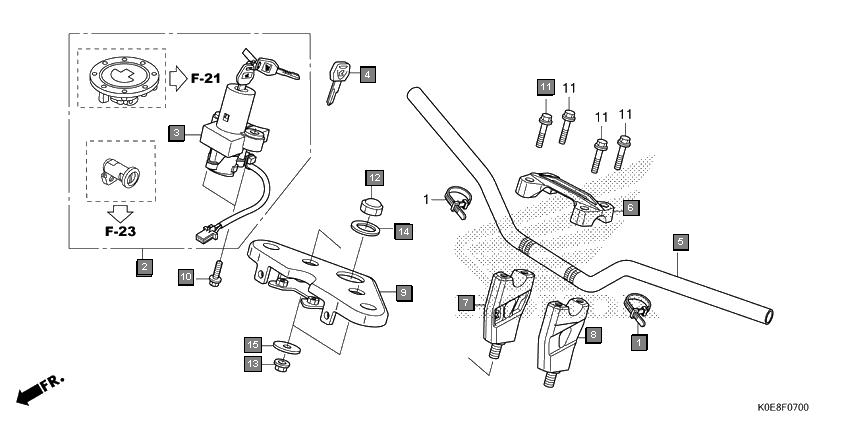

Motorcycles XBlade CBF160FSK Frame Handle pipe/top bridge
Ref.No. Part No. Description Oty
1 32161KSP920 BAND B1, WIRE 2
2 35010K43D00 KEY SET 1
3 35100K43D01 SWITCH ASSY., COMBINATION & LOCK 1
4 35121KPPN01 KEY, BLANK 1
5 53100K0ED00ZA PIPE, STEERING HANDLE *NH1* BLACK 1
6 53131K0ED00ZA HOLDER, HANDLE UPPER *NH105* MAT BLACK(#15-#20) 1
7 53132K0ED00ZA HOLDER, R. HANDLE LOWER *NH105* MAT BLACK(#15-#20) 1
8 53142K0ED00ZA HOLDER, L. HANDLE LOWER *NH105* MAT BLACK(#15-#20) 1
9 53230K0ED00 BRIDGE COMP., FORK TOP 1
10 90100KYJ710 BOLT, COMBINATION SWITCH SETTING 2
11 90111362000 BOLT, FLANGE, 8X36 4
12 90304K63D30 NUT, STEERING STEM 1
13 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 2
14 90503KSP900 WASHER, STEERING STEM 1
15 90521427770 WASHER, 10.3MM 2
