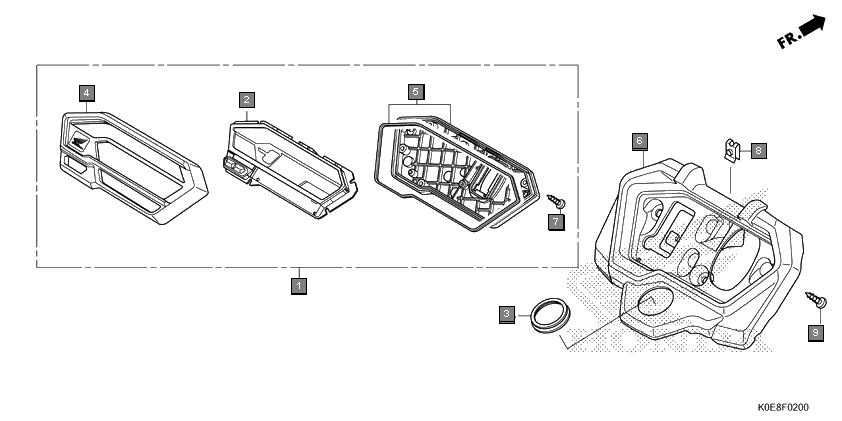

Motorcycles XBlade CBF160FSK Frame Meter
Ref.No. Part No. Description Oty
1 37100K0ED21 METER ASSY., COMBINATION(KPH) 1
2 37110K0ED21 METER COMP., LCD 1
3 37312K0ED00 GROMMET, COMBINATION SWITCH 1
4 37610K0ED01 CASE ASSY., UPPER 1
5 37620K0ED01 CASE ASSY., UNDER 1
6 61310K0ED00 COVER, METER 1
7 90314KVSF22 SCREW, TAPPING, 3X14 6
8 90320KTE600 NUT, SPRING, 5MM 1
9 9390325320 SCREW, TAPPING, 5X16 3
