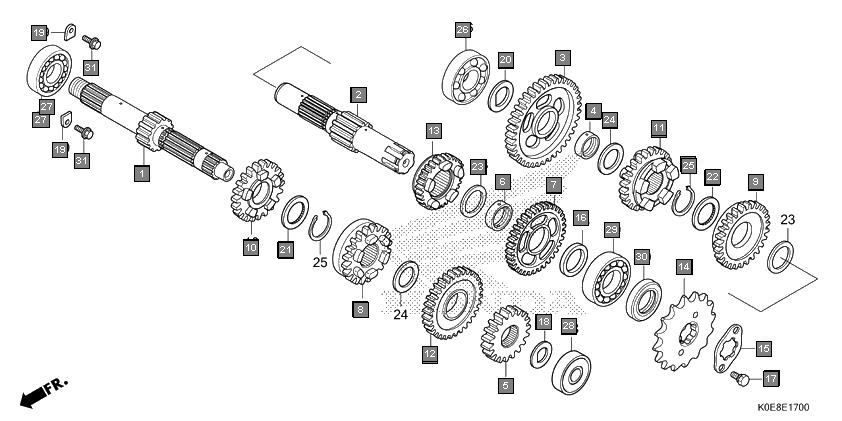

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 23210K38900 | MAINSHAFT COMP.(13T) | 1 |
| 2 | 23221K43900 | COUNTERSHAFT(19T) | 1 |
| 3 | 23421K43900 | GEAR, COUNTERSHAFT FIRST(40T) | 1 |
| 4 | 23427KRM840 | BUSH, 17X20.5X8.0 | 1 |
| 5 | 23431K43900 | GEAR, MAINSHAFT SECOND(19T) | 1 |
| 6 | 23432KRM840 | BUSH, 20MM | 1 |
| 7 | 23441K43900 | GEAR, COUNTERSHAFT SECOND(34T) | 1 |
| 8 | 23451K43900 | GEAR, MAINSHAFT THIRD(20T) | 1 |
| 9 | 23461K43900 | GEAR, COUNTERSHAFT THIRD(26T) | 1 |
| 10 | 23471K43900 | GEAR, MAINSHAFT FOURTH(30T) | 1 |
| 11 | 23481K43900 | GEAR, COUNTERSHAFT FOURTH(32T) | 1 |
| 12 | 23491K43900 | GEAR, MAINSHAFT FIFTH(24T) | 1 |
| 13 | 23501K43900 | GEAR, COUNTERSHAFT FIFTH(22T) | 1 |
| 14 | 23801KBP900 | SPROCKET, DRIVE(15T) | 1 |
| 15 | 23811KR3600 | PLATE A2, FIXING | 1 |
| 16 | 23911KREG00 | COLLAR, 20MM | 1 |
| 17 | 90084041000 | BOLT, DRIVE SPROCKET FIXING | 2 |
| 18 | 90412KPH900 | WASHER, SPECIAL, 12X23 | 1 |
| 19 | 90441KRM840 | PLATE, BEARING HOLDER | 2 |
| 20 | 90451KREG00 | WASHER, SPECIAL(17MM) | 1 |
| 21 | 90453KVS900 | WASHER, SPLINE, 20MM | 1 |
| 22 | 90453KVX600 | WASHER, SPLINE, 20MM | 1 |
| 23 | 90454KPS900 | WASHER B, THRUST, 20MM | 2 |
| 24 | 90458KVS900 | WASHER, THRUST, 17MM | 2 |
| 25 | 90605KVS900 | SET RING, 20MM | 2 |
| 26 | 91003K38901 | BEARING, RADIAL BALL, 17X42X12 | 1 |
| 27 | 91004KTN900 | BEARING, RADIAL BALL, 17X40X12 | 1 |
| 28 | 91005K38901 | BEARING, RADIAL BALL, 12X32X10 | 1 |
| 29 | 91006K38901 | BEARING, RADIAL BALL, 20X52X15 | 1 |
| 30 | 91216KSP911 | OIL SEAL, 20X34X7(ARAI) | 1 |
| 31 | 957010601600 | BOLT, FLANGE, 6X16 | 2 |
