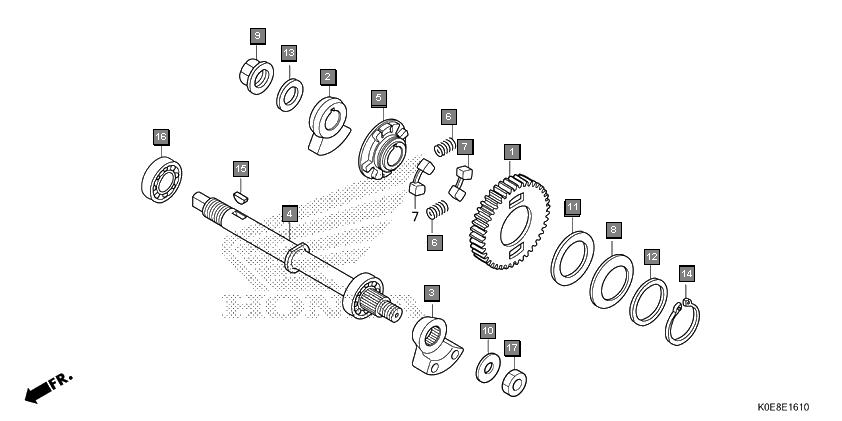

Motorcycles XBlade CBF160FSK Engine Balancer shaft
Ref.No. Part No. Description Oty
1 13422K38900 GEAR, BALANCER DRIVEN(41T) 1
2 13423KREG00 WEIGHT A, BALANCER 1
3 13424KREG00 WEIGHT B, BALANCER 1
4 13425K38900 SHAFT COMP., BALANCER 1
5 13426KREG01 BUSH, BALANCER DRIVEN GEAR 1
6 13427KRM840 SPRING, DAMPER 2
7 13428KRM840 RUBBER, DAMPER 2
8 13538KRM840 SPRING, THRUST 1
9 90202KRM840 NUT, SPECIAL FLANGE, 14MM 1
10 90401KREG00 WASHER, 12.2X24X2.6 1
11 90403KRM840 WASHER, 28.1X45X1.4 1
12 90458KREG00 WASHER, THRUST, 28.2X36X1.0 1
13 90501KPTA00 WASHER, 14.1X29X2.8 1
14 90604KRM840 CIRCLIP, EXTERNAL, 28 1
15 9451028000 CIRCLIP, EXTERNAL, 28MM 1
16 90741KGH900 KEY, WOODRUFF, 4MM 1
17 91004K38901 BEARING, RADIAL BALL, 15X35X11 1
18 94002122000S NUT, HEX., 12MM 1
