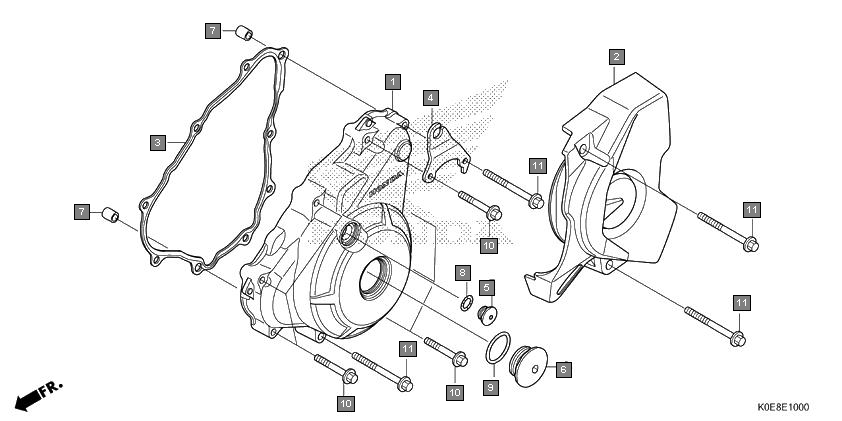

Motorcycles XBlade CBF160FSK Engine Left crankcase cover
Ref.No. Part No. Description Oty
1 11341K0ED00 COVER, L. CRANKCASE 1
2 11360K0ED00 COVER COMP., L. RR. 1
3 11395KREG01 GASKET, L. COVER 1
4 17952K38900 STAY, CHOKE CABLE 1
5 90084K38940 CAP, 14MM 1
6 90087KSP860 CAP, 32MM 1
7 90702KRM840 DOWEL PIN, 8X14 2
8 91303KRM840 O-RING, 13.8X2.5 1
9 91305KRM840 O-RING, 31.7X2.4 1
10 960010603500 BOLT, FLANGE, 6X35 7
11 960010604500 BOLT, FLANGE, 6X45 4
