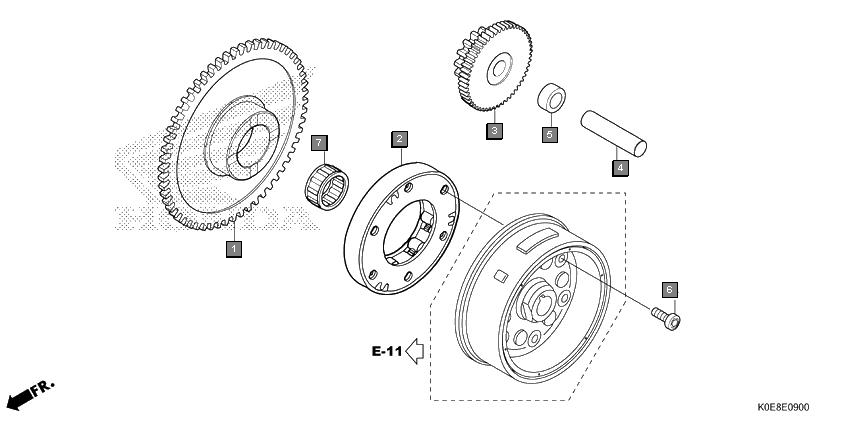

Motorcycles XBlade CBF160FSK Engine Starting clutch
Ref.No. Part No. Description Oty
1 28110KREG00 GEAR, STARTER DRIVEN(62T) 1
2 28120KPH701 CLUTCH ASSY., ONE WAY(EXEDY) 1
3 28131KREG01 GEAR, STARTER REDUCTION (14/60T) 1
4 28132KN6930 SHAFT, REDUCTION GEAR 1
5 28133KRM850 COLLAR, STARTER REDUCTION 1
6 90085KSP901 BOLT, SOCKET, 6MM 6
7 91022K38901 BEARING, NEEDLE, 22X29X16.8 1
