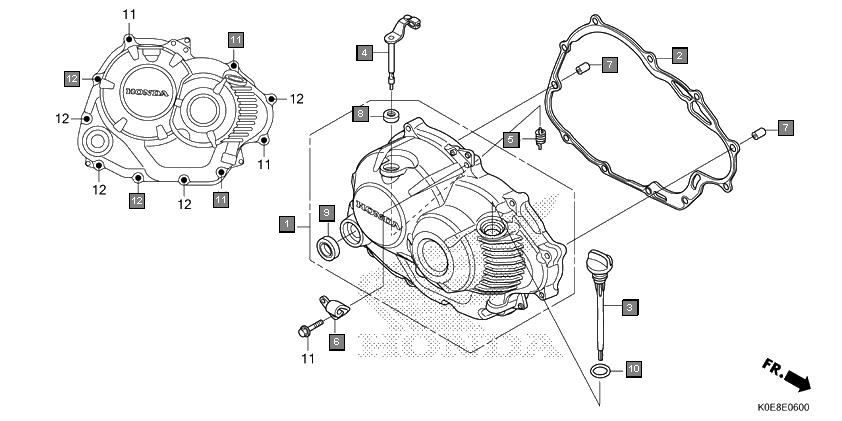

Motorcycles XBlade CBF160FSK Engine Right crankcase cover
Ref.No. Part No. Description Oty
1 11300K38900 COVER ASSY., R. CRANKCASE 1
2 11393KREG01 GASKET, R. COVER 1
3 15651K38900 GAUGE, OIL LEVEL 1
4 22810KREG00 LEVER COMP., CLUTCH 1
5 22815KM7700 SPRING, CLUTCH LEVER 1
6 22821K43900 RECEIVER, CLUTCH CABLE 1
7 90702KRM840 DOWEL PIN, 8X14 2
8 91202KSP911 OIL SEAL, 12X18X4 1
9 91204KSP911 OIL SEAL, 16X28X7 1
10 91307KRM840 O-RING, 18X3 1
11 960010603000 BOLT, FLANGE, 6X30 5
12 960010604000 BOLT, FLANGE, 6X40 6
