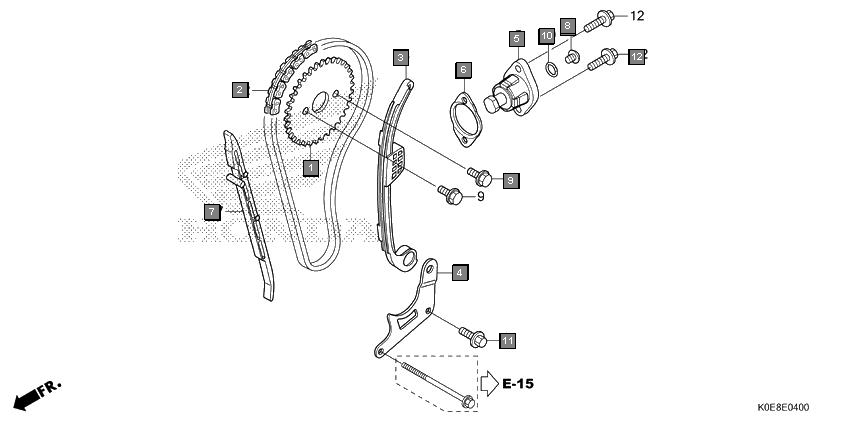

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 14321KRM840 | SPROCKET, CAM(34T) | 1 |
2 | 14401KREG01 | CHAIN, CAM(98L)(DAIDO) | 1 |
3 | 14510KREG00 | TENSIONER ASSY., CAM CHAIN | 1 |
4 | 14515KREG00 | PLATE, TENSIONER SETTING | 1 |
5 | 14520K38901 | LIFTER ASSY., TENSIONER | 1 |
6 | 14560KSP910 | GASKET, TENSIONER LIFTER | 1 |
7 | 14611KREG00 | GUIDE, CAM CHAIN | 1 |
8 | 90005K15900 | SCREW, PAN, 6X6 | 1 |
9 | 90083KRM840 | BOLT, KNOCK, 5MM | 2 |
10 | 91306KRM840 | O-RING, 1.5X9.5 | 1 |
11 | 957010601600 | BOLT, FLANGE, 6X16 | 1 |
12 | 960010602200 | BOLT, FLANGE, 6X22 | 2 |
