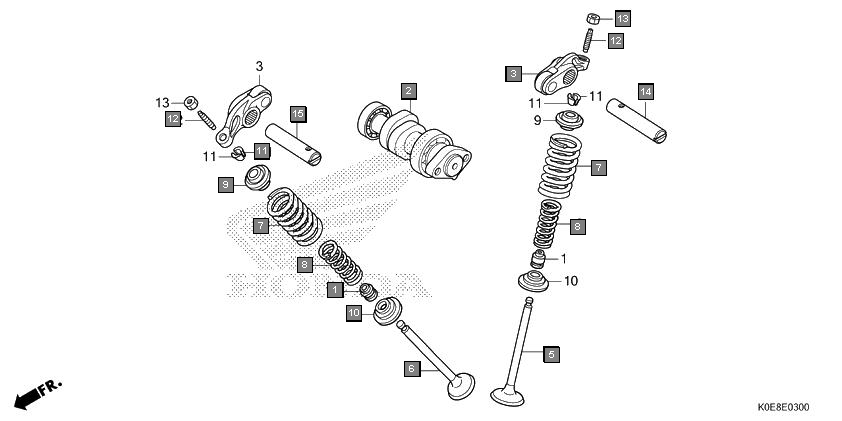

Motorcycles XBlade CBF160FSK Engine Camshaft/valve
Ref.No. Part No. Description Oty
1 12209GB4682 SEAL, VALVE STEM(ARAI) 2
2 14100K38900 CAMSHAFT COMP. 1
3 14430KREG00 ARM COMP., VALVE ROCKER 2
4 14711K38900 VALVE, IN. 1
5 14721K38900 VALVE, EX. 1
6 14751KREG00 SPRING, VALVE OUTER 2
7 14761KREG00 SPRING, VALVE INNER 2
8 14771KREG00 RETAINER, VALVE SPRING 2
9 14777KREG00 SEAT, VALVE SPRING 2
10 14781MA6000 COTTER, VALVE 4
11 90012KK3830 SCREW, TAPPET ADJUSTING 2
12 90206250000 NUT, TAPPET ADJUSTING 2
13 14451K68900 SHAFT, IN. ROCKER ARM 1
14 14452K68900 SHAFT, EX. ROCKER ARM 1
