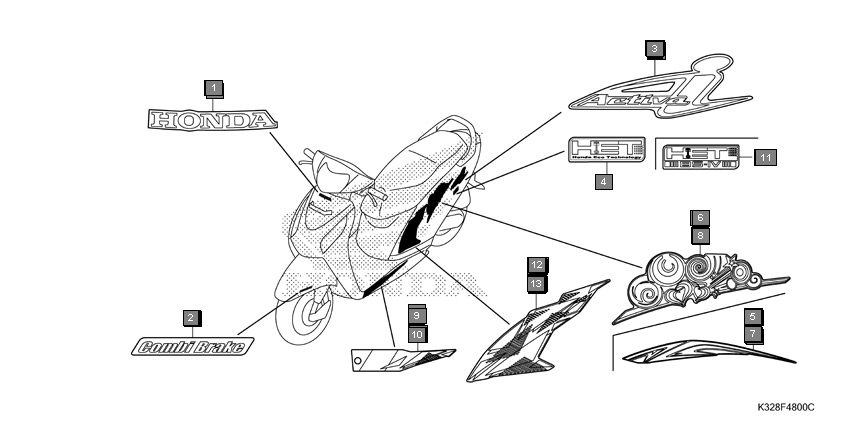

Scooters Activa i SCV110HK Frame Mark
Ref.No. Part No. Description Oty
1 86101K32900ZB MARK, HONDA(75MM)*TYPE1* 1
2 86101K32780ZA MARK, HONDA(75MM) *TYPE1* 1
3 86611K32900ZA MARK(COMBI BRAKE)*TYPE2* 1
4 61106K38950ZA MARK(COMBI BRAKE) *TYPE1*(R. SIDE ONLY) 1
5 86611K32900ZB MARK(COMBI BRAKE)*TYPE1* 1
6 86832K32700ZA MARK, BODY COVER *TYPE2* 2
7 86832K32780ZA MARK, BODY COVER *TYPE1* 2
8 86832K32700ZB MARK, BODY COVER *TYPE1* 2
9 86641K32700ZD STRIPE, R. FLOOR SIDE COVER *TYPE2* 1
10 86641K32700ZA STRIPE, R. FLOOR SIDE COVER *TYPE5* 1
11 86641K32700ZC STRIPE, R. FLOOR SIDE COVER *TYPE3* 1
12 86641K32770ZA STRIPE, R. FLOOR SIDE COVER *TYPE1* 1
13 86642K32700ZC STRIPE, L. FLOOR SIDE COVER *TYPE3* 1
14 86642K32700ZD STRIPE, L. FLOOR SIDE COVER *TYPE2* 1
15 86642K32770ZA STRIPE, L. FLOOR SIDE COVER *TYPE1* 1
16 86642K32700ZA STRIPE, L. FLOOR SIDE COVER *TYPE5* 1
17 86833K43900ZA MARK, HET BS 4 *TYPE1* (R SIDE ONLY) 1
18 86835K32770ZA STRIPE, R. BODY COVER *TYPE1* 1
19 86835K32700ZC STRIPE, R. BODY COVER *TYPE3* 1
20 86835K32700ZD STRIPE, R. BODY COVER *TYPE2* 1
21 86835K32700ZA STRIPE, R. BODY COVER *TYPE5* 1
22 86836K32700ZD STRIPE, L. BODY COVER *TYPE2* 1
23 86836K32700ZA STRIPE, L. BODY COVER *TYPE5* 1
24 86836K32770ZA STRIPE, L. BODY COVER *TYPE1* 1
25 86836K32700ZC STRIPE, L. BODY COVER *TYPE3* 1
